Preparing Engine for Storage

causym CAUTION: Gasoline is highly flammable and can cause serious injury or death to you or others if ignited. DO NOT use gasoline as a cleaning agent when preparing engine for storage.

1. Wash outside of engine thoroughly with a safe solvent.

2. Clean the air cleaner. See ENGINE AND DRIVE TRAIN SECTION.

IMPORTANT: DO NOT drain cooling system to protect against freezing. Cab heater does not drain completely, so damage would result.

3. Drain, flush, and refill cooling system with fresh coolant. Turn heater on and operate engine until it reaches operating temperature.

AG,OUO1011,1228 -19-09SEP99-1/3

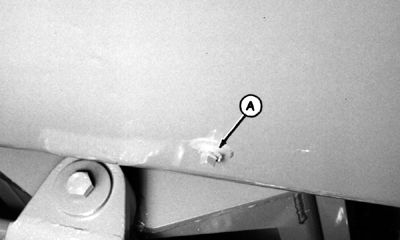

4. Drain fuel tank (A) and add 38 L (10 gal) of diesel fuel with 414 mL (14 oz) of corrosion inhibitor. Start engine and operate at fast throttle position for 15 to 20 minutes. Allow engine to cool for 15 to 20 minutes.

5. Add 296 mL (10 oz) of corrosion inhibitor to crankcase.

6. Remove starting aid line from air intake system. Pour 0.1 L (3 oz) of inhibitor into intake system and replace line. Remove side panel from console. Remove 3-amp fuse from Fuel Shutoff position in cab mounted fuse block. Crank engine ONLY a few revolutions. Return fuel shut-off fuse and side panel to original positions.

7. Remove batteries (negative cable first) and store them in a dry, cool place. Charge batteries every 30 days if necessary.

N42182PH


A-Fuel Tank

AG,OUO1011,1228 -19-09SEP99-2/3

8. Clean radiator (A).

9. Seal the following openings with tape and/or plastic bags to prevent loss of corrosion inhibiting vapors.

  • Exhaust pipe
  • Air cleaner pre-cleaner
  • Engine dipstick and tube
  • Crankcase breather tube


A-Radiator

N42132FY

AG,OUO1011,1228 -19-09SEP99-3/3
