Moving Picking Units

Picking units can be moved apart to gain access for cleaning, inspection and service.

2. Pull spring loaded pin (B) from hole.

3. Turn tool to move unit until pin aligns with desired hole location. To prevent roll-back, make sure pin fully engages new hole.

4. After service, repeat above steps and return unit to original position. Make sure pin fully engages hole.

5. Return tool to storage position.

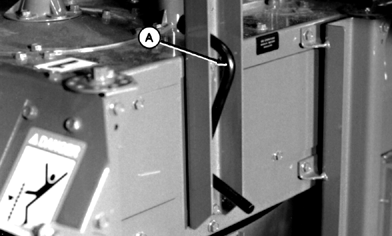

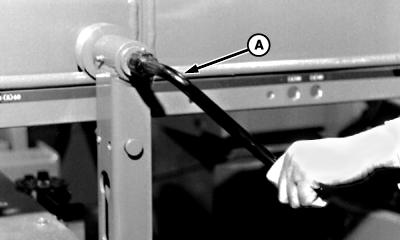

A-Moving Tool

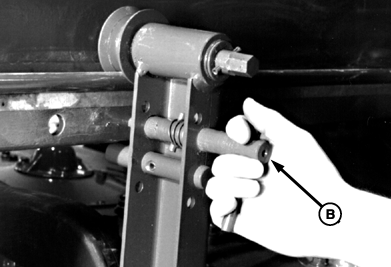

B-Spring Loaded Pin
