Dimensions

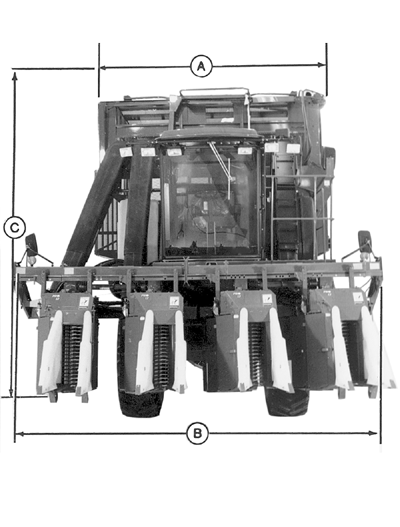

A-3651 mm (143-3/4 in.)
B-3861 mm (152 in.),
3886 mm (153 in.),
3200 mm (126 in.), 4 units on 762 mm (30 in.)
3962 mm (156 in.), 4 units on 1016 mm (40 in.)
3962 mm (156 in.), 5 units on 762 mm (30 in.)
4572 mm (180 in.), Skip-row
C-3759 mm (148 in.) (Transport)
4521 mm (178 in.) (Lower Field Height)
4826 mm (190 in.) (Upper Field Height)
|
|
|
|
NXH,OM9970125,R -19-26SEP97-1/5
|
|

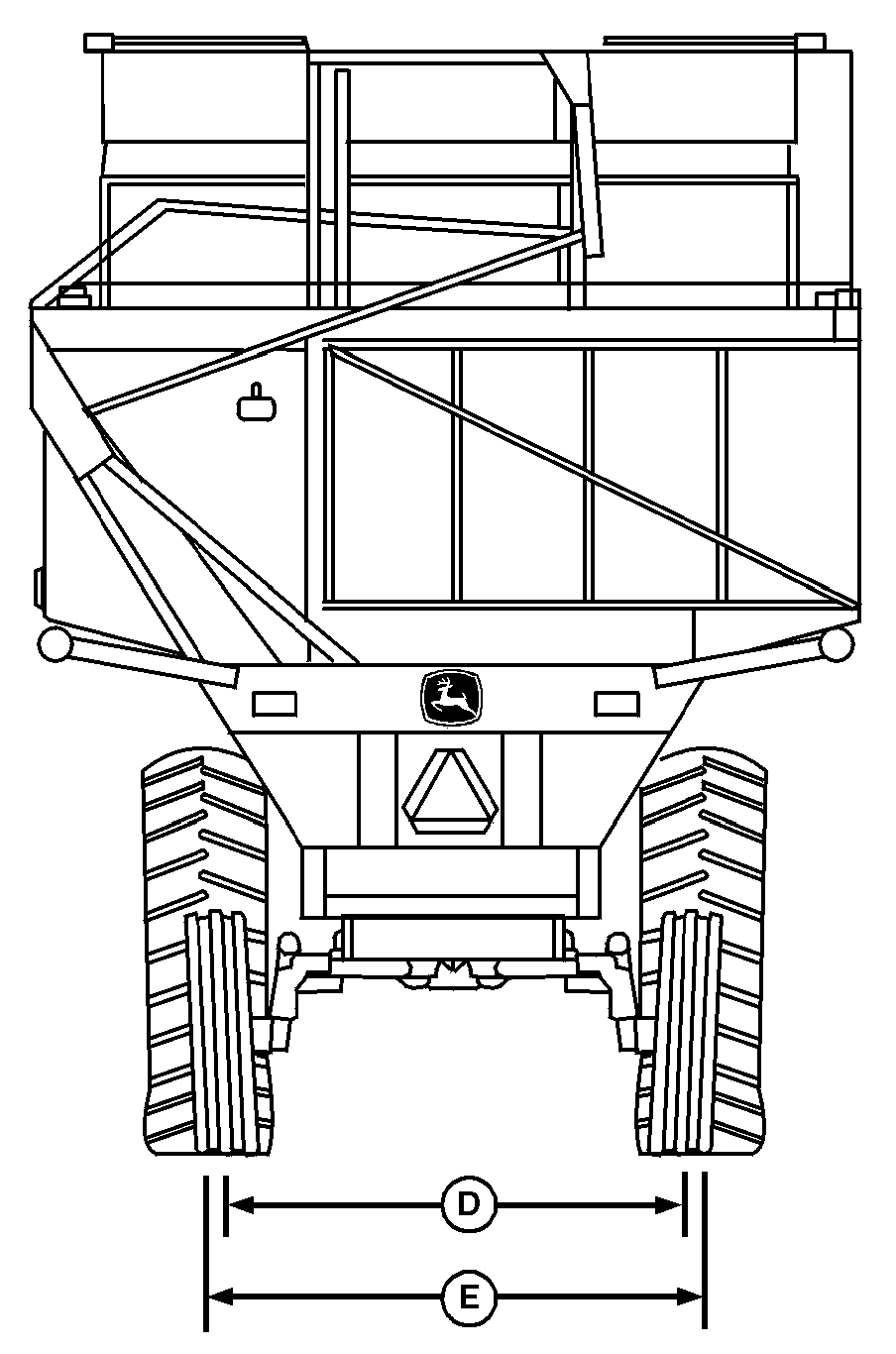

D-Guide wheel width from factory,
center-to-center of tires;
2019 or 2223 mm (79.5 or 87.5 in.)
E-Drive wheel width, center-to-center of tires;
2261 mm (89 in.)
2616 mm (103 in.) skip-row
|
|
|
|
NXH,OM9970125,R -19-26SEP97-2/5
|

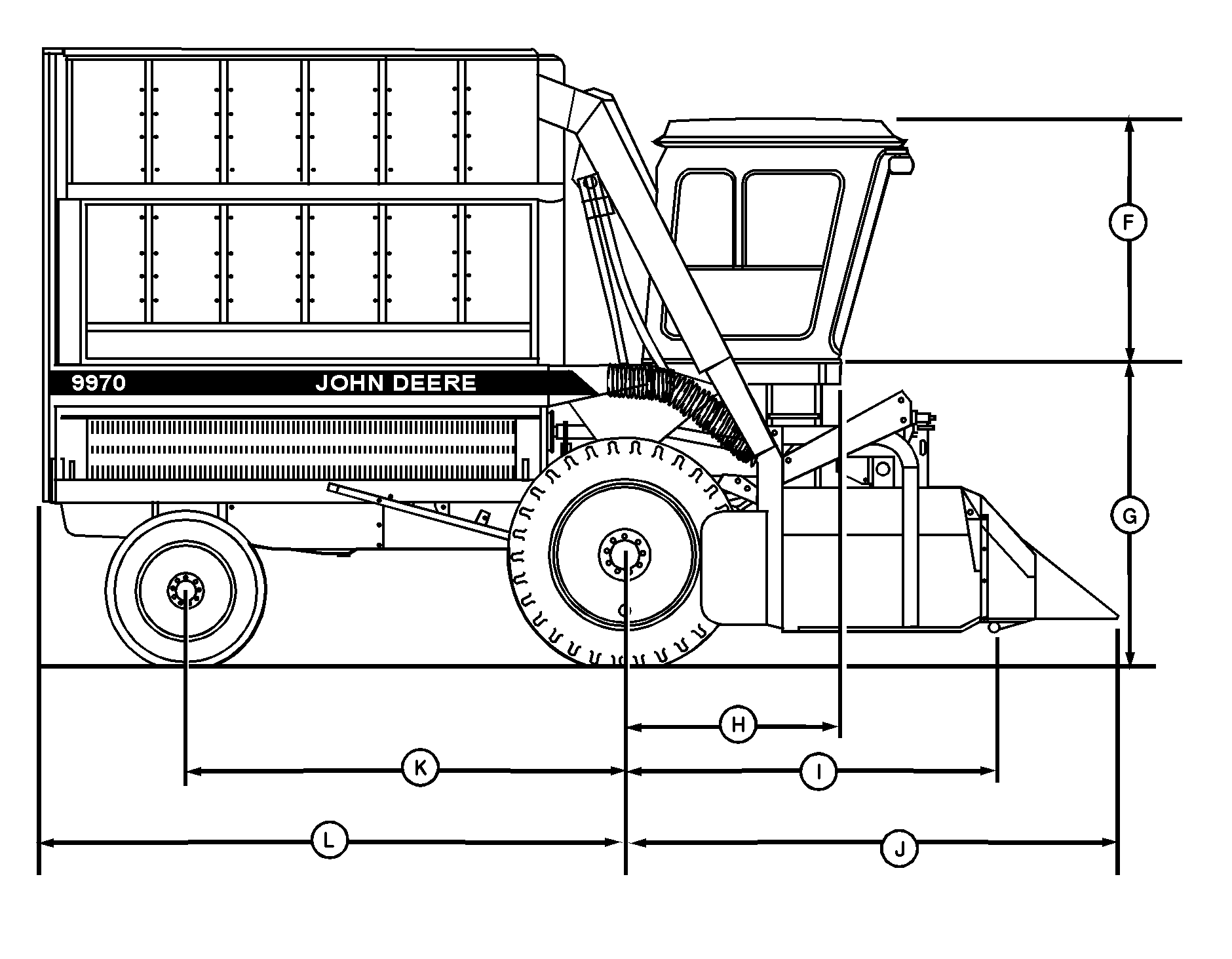

F-1638 mm (64-1/2 in.)
G-2096 mm (82-1/2 in.)
|
H-1454 mm (57-1/4 in.)
I-2962 mm (116-5/8 in.)
|
J-3546 mm (139-5/8 in.)
K-3321 mm (130-3/4 in.)
|
L-4318 mm (170 in.)
|
|
|
NXH,OM9970125,R -19-26SEP97-3/5
|

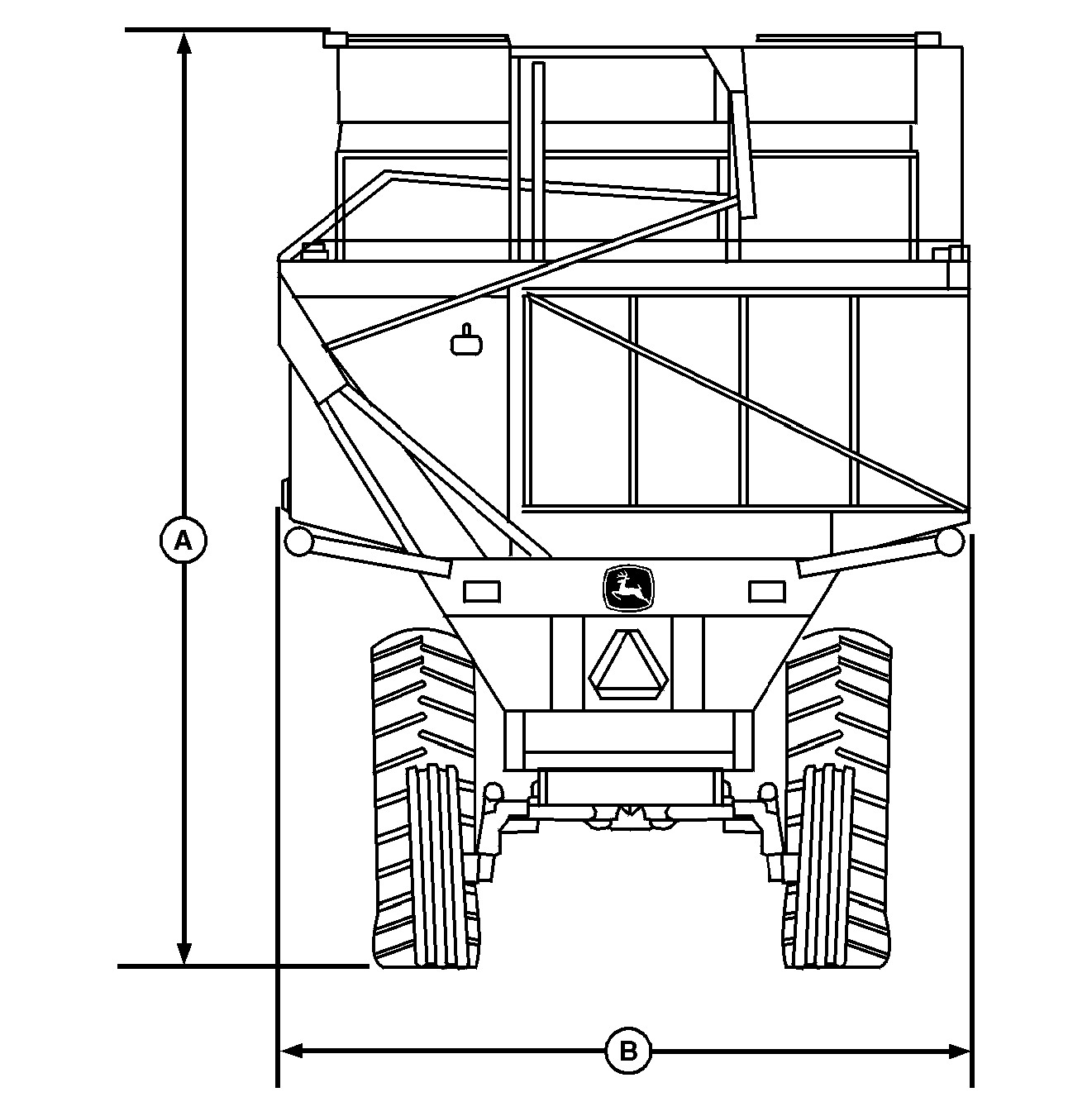

| | A-4.8 m (190 in.) Full Up Position,
4.5 m (178 in.) Intermediate Position,
3.8 m (148 in.) Transport Position
| B-3627 mm (142.79 in.)
|
|
|
|
NXH,OM9970125,R -19-26SEP97-4/5
|

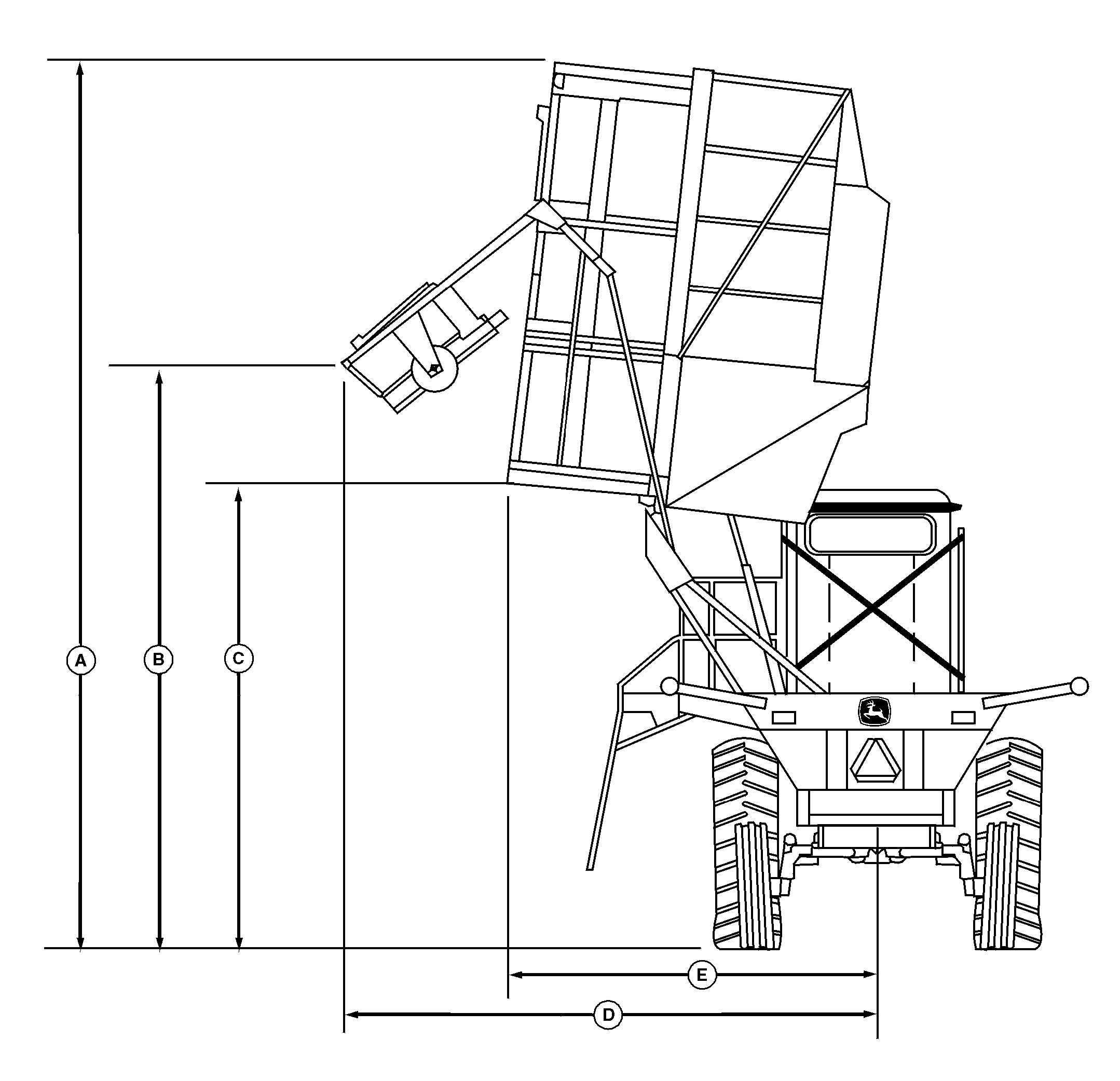

A-7354 mm (289.5 in.)
B-4749.6 mm (186.99 in.)
|
C-3802.7 mm (149.7 in.)
|
D-4254.7 mm (167.51 in.)
|
E-2943.7 mm (115.89 in.) or 3460.9 mm (136.26 in.) with dump extension (Not Shown)
|
|
|
NXH,OM9970125,R -19-26SEP97-5/5
|
|
