Tachometer/Hour Meter

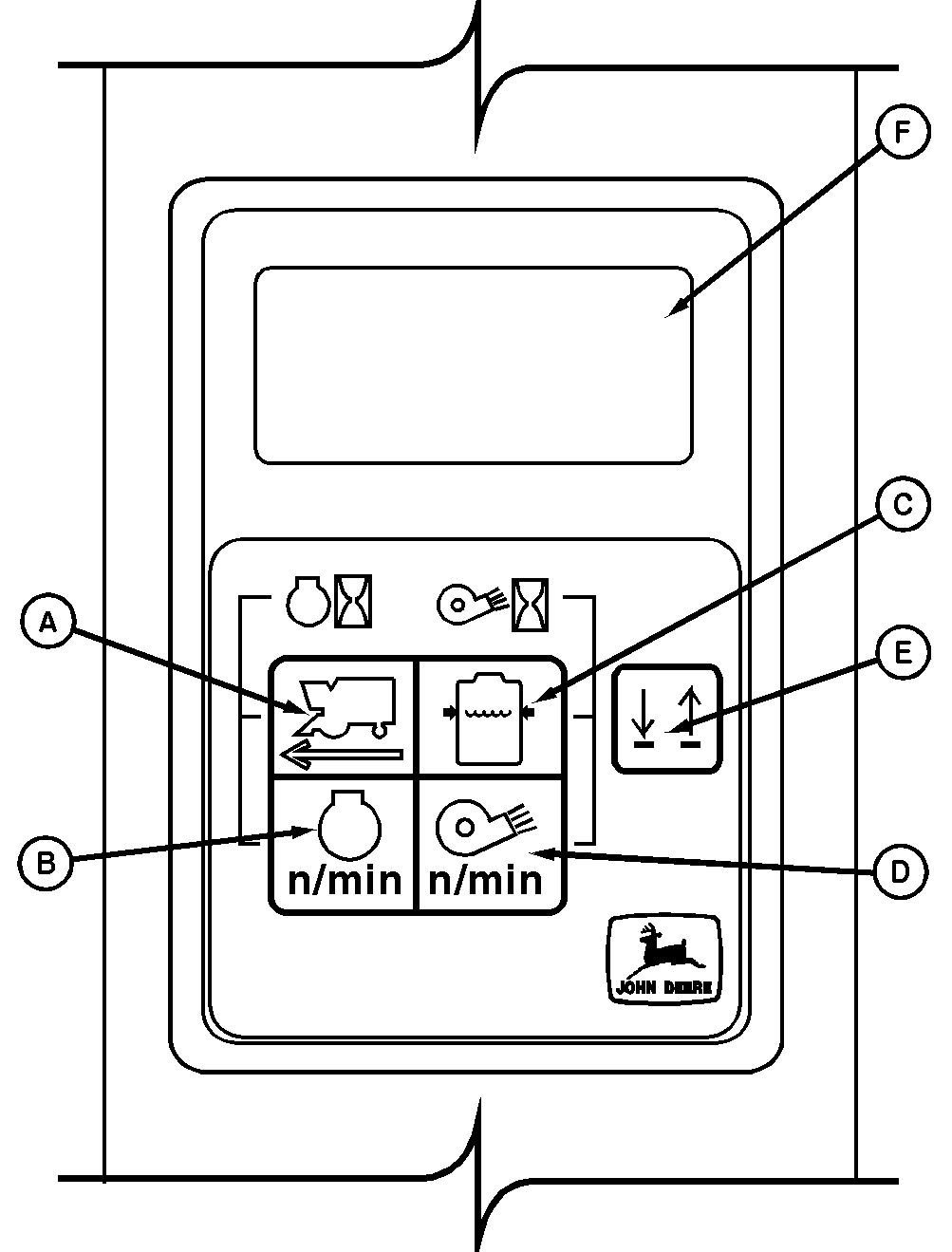

Digital tachometer consists of four "touch" switches (A, B, C, D) that display a total of six different kinds of data.

This data consists of ground speed, engine rpm, water pressure, fan speed values, and engine and fan hours of the machine.

The Active Line Select switch (E) selects between the top and bottom line on the display panel (F).

Use the hour readings to help schedule regular service and lubrication.

NOTE: Digital tachometer displays the message "SEU1" after each 50 hours of engine operation. This is the service interval display message designed to help schedule regular lubrication and maintenance. See CLEARING 50 HOUR SERVICE CODE in this section.

A-Ground Speed Switch
B-Engine RPM Switch
C-Water Pressure Switch
D-Fan Speed Switch
E-Active Line Select Switch
F-Display Panel
A/B-Engine Hours
C/D-Fan Hours

NXH,OM997020,H -19-30SEP97-1/1
