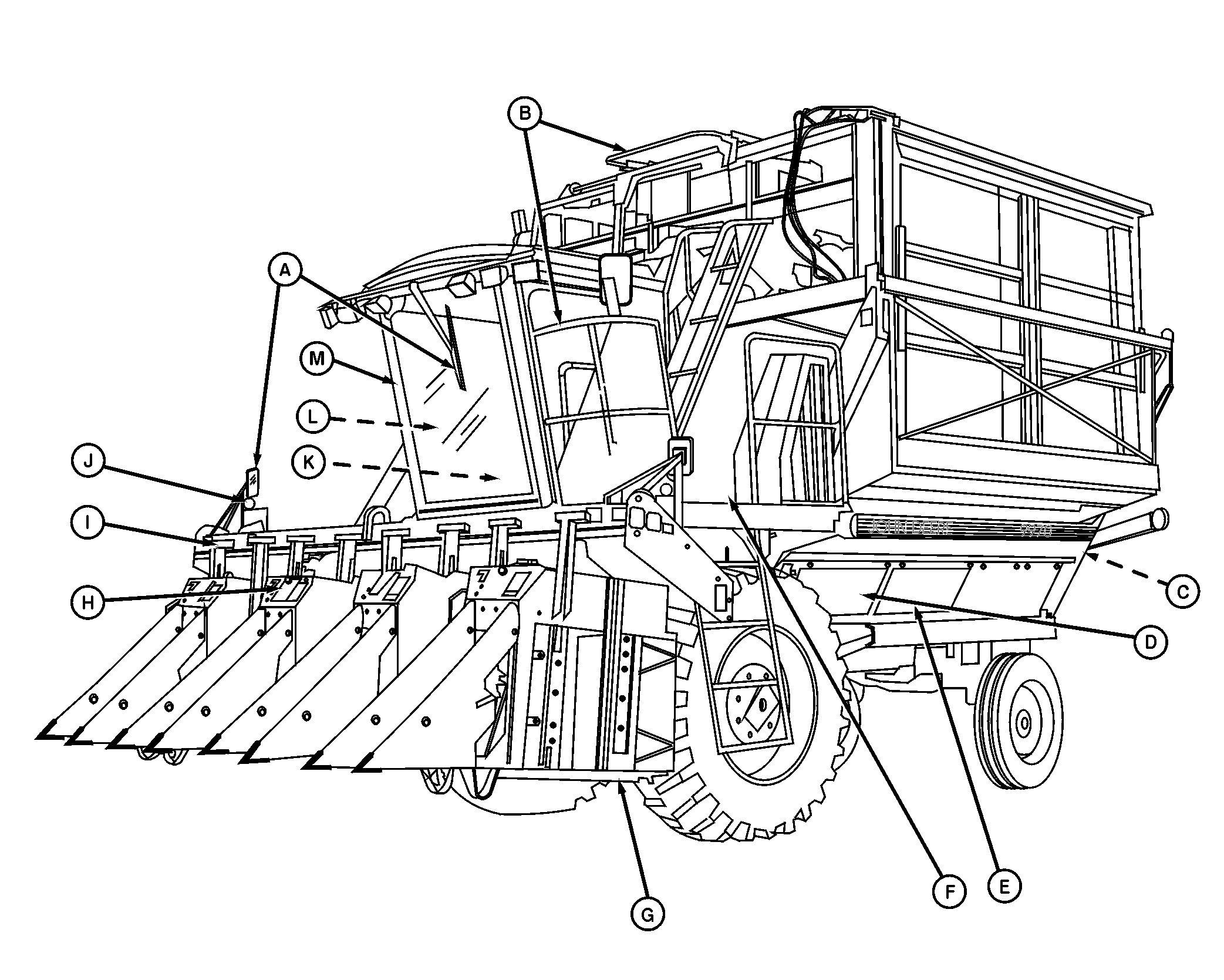

A-Windshield Wipers and Large Rear View Mirrors - For clear view of surroundings.
B-Hand Rails - Gives support when climbing on machine, walking on platform or walking on basket.
C-SMV Emblem - Alerts following traffic of your presence on roadway.
|
D-Basket Cylinder Lock Valve - Prevents basket unload cylinders from operating when working under basket.
E- Starter Solenoid Shielding - For bypass start prevention.
F- Divotted Steps and Platform - Helps prevent slipping when on platform or ladder, also diminishes dirt and mud buildup
|
G-Unit Lift Cylinder Lock Up - Prevents units from moving down.
H-Inspection Bypass for Operator Presence System
I-Front and Rear Reflectors - Alerts traffic of your presence on roadway.
J- Front and Rear Hazard Lights - Alerts oncoming and following traffic of your presence on roadway.
|
K-Park Brake
L-Horn - To alert others in area.
M-Cab With Seat Belt and Operator Presence System-For operator comfort and safety.
|
