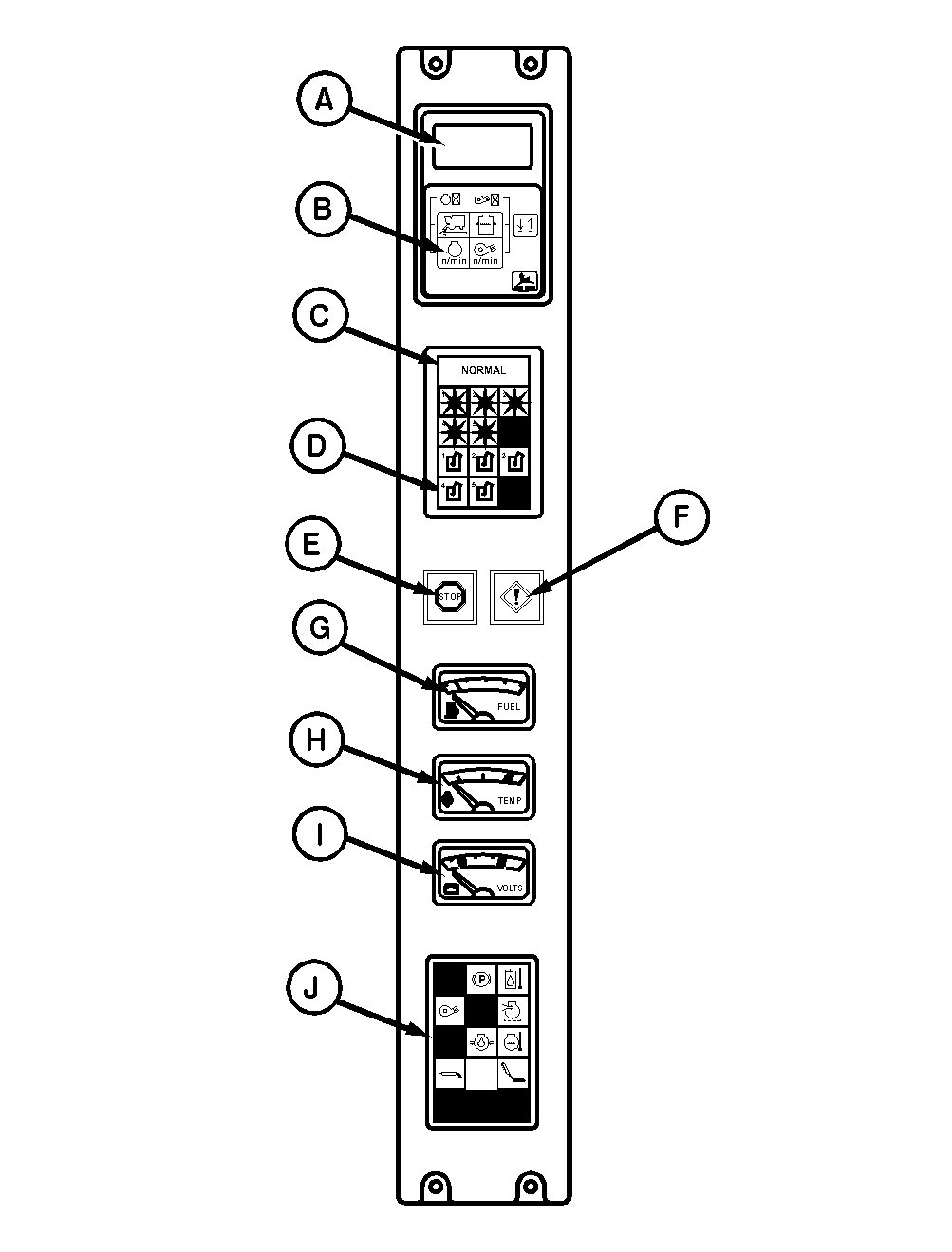

Indicators and Gauges-Location
A-Display Panel
B-Tachometer-Ground Speed, Water Pressure, Engine RPM, Fan Speed, Engine Hours, Fan Hours, Active Line Select
C-NORMAL Light
D-Monitor Display Panel
E-STOP Indicator
F-Caution Indicator
G-Fuel Level
H-Engine Coolant Temperature
I-Battery Charge (Voltmeter)
J-Indicator Display Panel
|
|
