Operating Tachometer

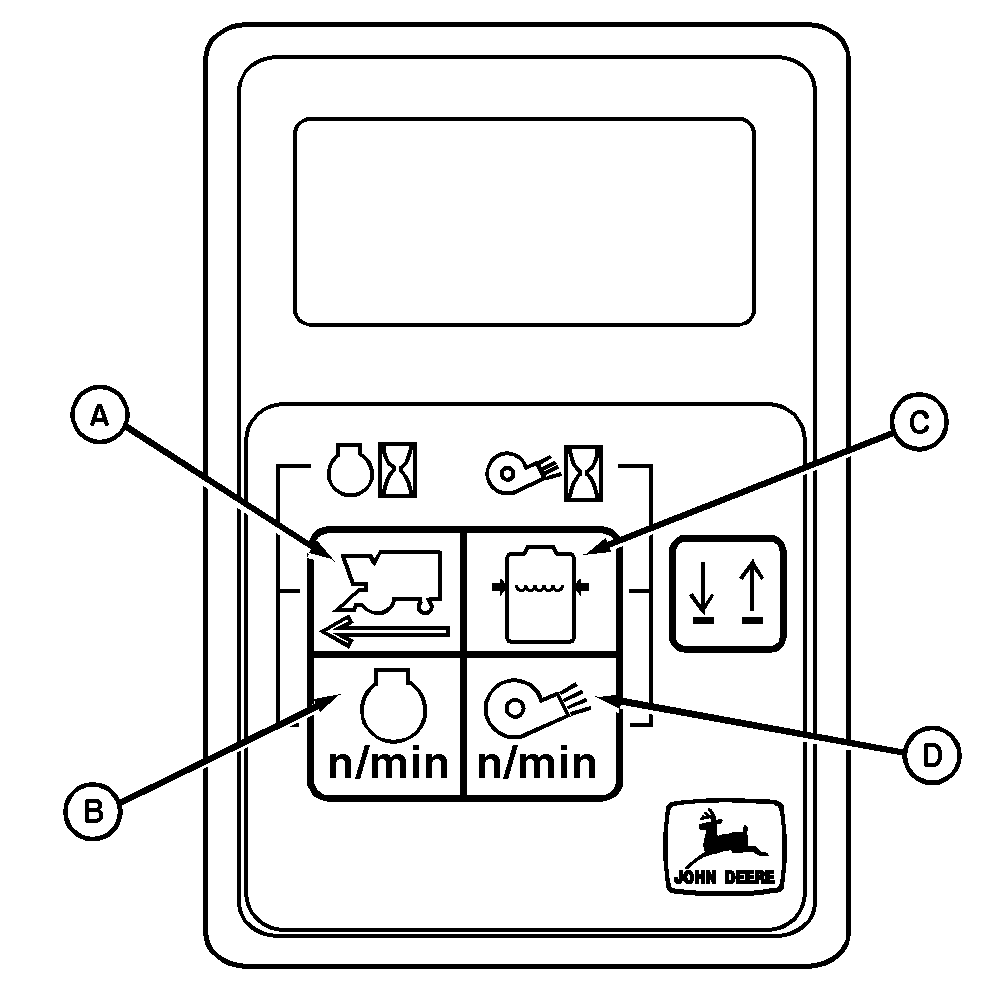

To display specific data press tachometer switch or switches as follows:
-
To display machine ground speed, press switch (A).
-
To display engine RPM, press switch (B).
-
To display water pressure, press switch (C).
-
To display fan speed, press switch (D).
-
To display engine hours, press switches (A) and (B) at the same time.
-
To display fan hours, press switches (C) and (D) at the same time.
A-Ground Speed Switch
B-Engine RPM Switch
C-Water Pressure Switch
D-Fan Speed Switch
|
|
