Fan Control Switch

IMPORTANT: Fan control switch is shipped from the factory in ENGAGED position. DO NOT disengage fan drive until the first basket is unloaded in field. Failure to adhere can result in shortened belt life.

Fan may be disengaged for adjustments, but engage fan control switch again after adjustments have been made. This provides proper belt break-in.

Solution pump MUST NOT run dry. Solution pump can be damaged if it runs dry.

NOTE: Check fan belt guides (A) and fan belt tension during break-in. See ADJUSTING COTTON FAN BELT AND GUIDES in AIR SYSTEM section.

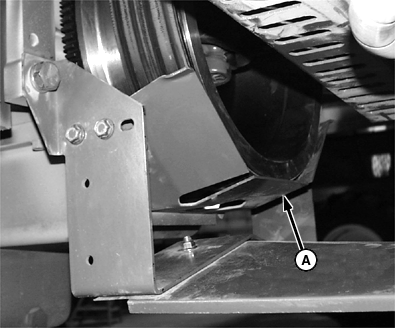

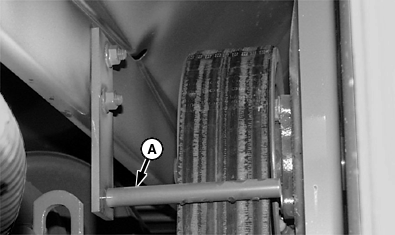

A-Fan Belt Guides

OUO6043,0001507 -19-25OCT01-1/1
