After Five Hours

Check all belts for initial stretch. Adjust tension as necessary. Continue to check all belts every few hours for the first 50 hours.

  • Unit Drive Belts-See PICKING UNITS section
  • Engine Accessory Drive Belt (Alternator and Air Conditioning Compressor)-See ENGINE AND DRIVE TRAIN section

NOTE: Engine accessory drive belt is automatically tensioned and cannot be manually adjusted. Check this belt for proper alignment only.

N42132AQ

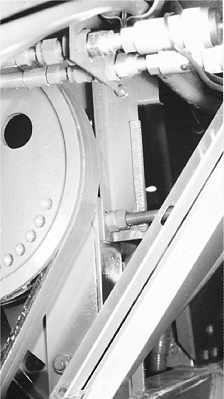

Unit Drive Belt Shown

OUO6043,0001508 -19-25OCT01-1/1
