High Coolant Temperature

When coolant temperature rises above 115°C (239°F), Caution indicator (A) will come on. Indicator remains on until coolant temperature falls below 100°C (212°F).

IMPORTANT: Check temperature gauge (B) if CAUTION indicator comes on. DO NOT operate an overheated engine or damage WILL result.

2. Clean side screens, radiator and oil cooler.

3. Let engine cool.

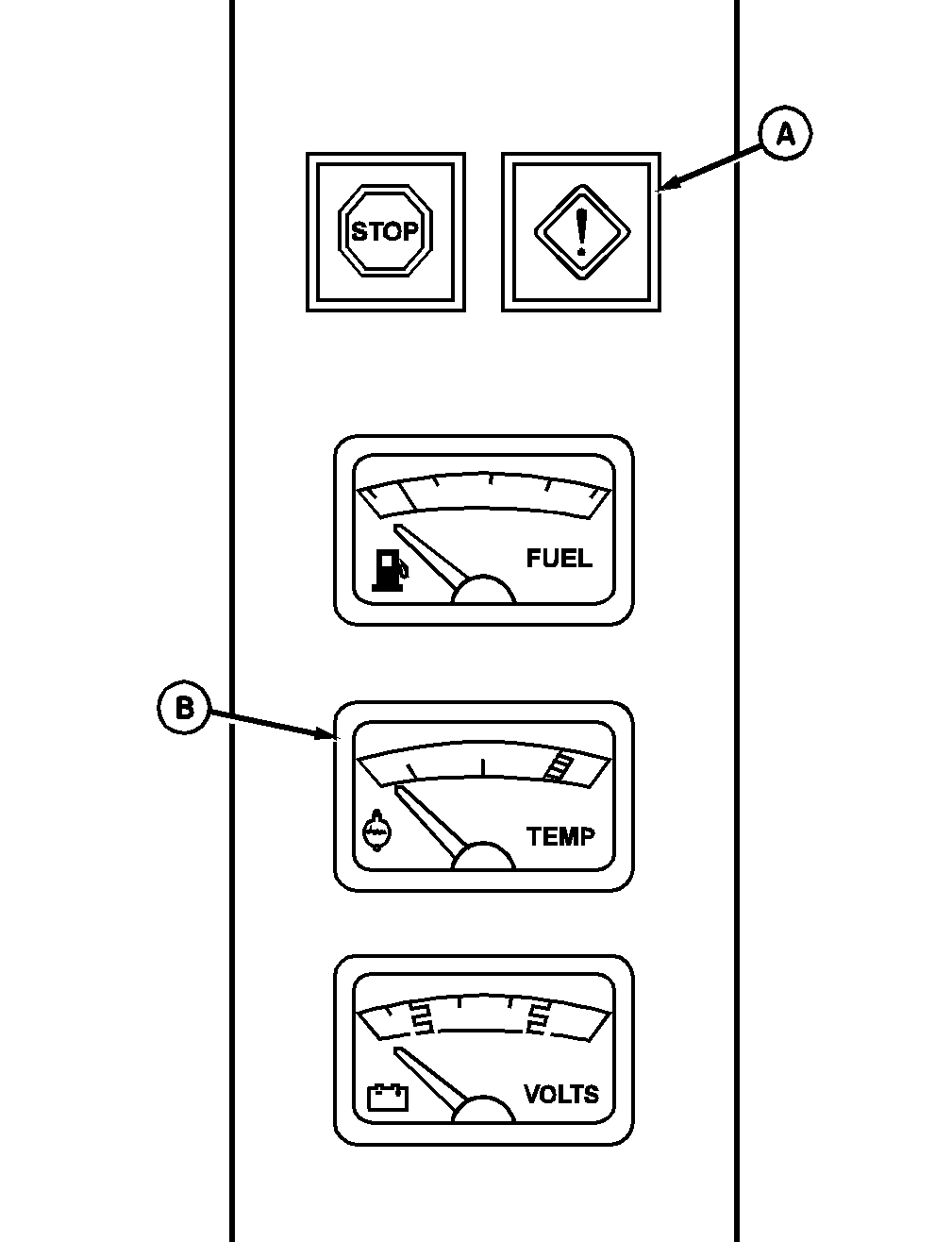

A-Caution Indicator
B-Temperature Gauge

OUO6043,0001512 -19-25OCT01-1/1
