Engaging Transmission
|

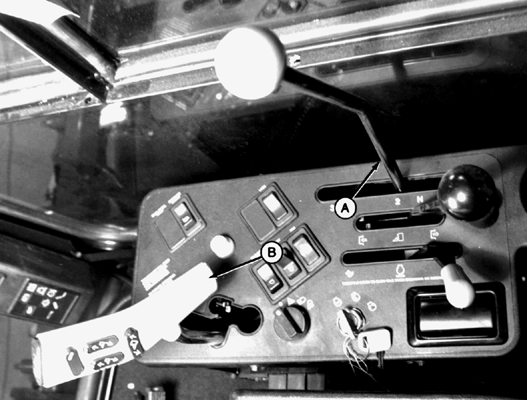

| 1. Position transmission lever (A) in desired gear (see chart below). If transmission does not readily go into gear, move hydro lever (B) slightly to align gears. |
2. Move hydro lever forward for forward travel (picking and transporting) speeds or rearward for reverse travel. |
| Type of Operation 2-Wheel Drive | Gear | Picking Unit | km/h (mph) |
|---|---|---|---|
| Picking | 1 | Engage | 0-5.8 (0-3.6) |
| Picking | 2 | Engage | 0-6.9 (0-4.3) |
| Transporting | 3 | Disengage | 0-24.9 (0-15.5) |
| Reverse | 1 | Disengage | 0-2.2 (0-1.5) |
| Reverse | 2 | Disengage | 0-3.2 (0-2.0) |
| Reverse | 3 | Disengage | 0-12.2 (0-7.6) |
| Type of Operation 4-Wheel Drive | Gear | Picking Unit | km/h (mph) |
|---|---|---|---|
| Picking | 1 | Engage | 0-4.7 (0-2.9) |
| Picking | 2 | Engage | 0-5.6 (0-3.5) |
| Transporting | 3 | Disengage | 0-14.5 (0-9.0) |
| Reverse | 3 | Disengage | 0-8 (0-5.0) |
