Parking Machine

1. Stop machine on a level surface and engage park brake.

2. Pull throttle lever (A) fully back.

3. Place transmission lever (B) in neutral.

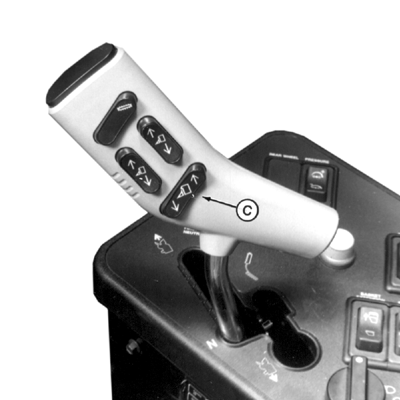

4. Using unit lift/lower switch (C) on hydro lever, lower picking units to ground.

5. Disengage picking units with unit engagement lever (D).

6. Disengage cotton fan using fan engagement switch (E).

7. Lower the basket if raised.

8. Turn off all lights and accessories.

IMPORTANT: Before stopping engine that has been operating at working load, idle engine at least two minutes at slow idle to cool turbocharger and hot engine parts. If engine is not properly cooled, damage can result.

9. Turn off key switch (F) and remove key.


A-Throttle Lever
B-Transmission Lever
C-Unit Lift/Lower Switch
D-Unit Engagement Lever
E-Fan Engagement Switch
F-Key Switch

N42167ON
N42169ML

OUO6043,000151C -19-25OCT01-1/1
