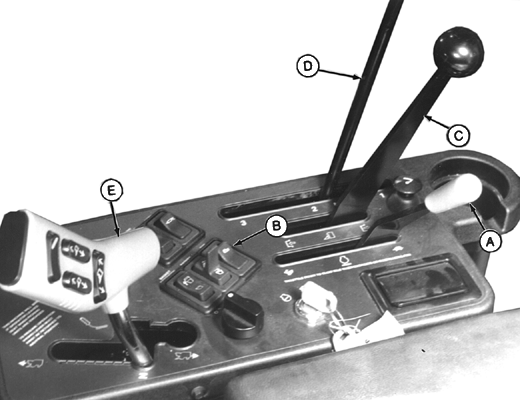

A-Throttle
B-Fan Switch

C-Picking Unit Lever

D-Transmission Lever

E-Hydro Lever

CAUTION: If the machine should suddenly move forward or backward, serious injury or death to you or others can result. ALWAYS be sure no one is standing on or near the picker when operating.

IMPORTANT: Unit input slip clutches will slip during cold temperature start-up. To avoid damage to clutch jaws, gradually increase engine speed until units can operate at fast throttle position and full hydro without clutch slippage.

2. Move throttle (A) to slow idle position (fan cannot be engaged if engine is not at slow idle).

3. Engage fan by pushing fan switch (B).

4. Engage picking units by pushing picking unit lever (C) fully forward.

5. With transmission lever (D) in neutral, slowly advance hydro lever (E) to start units.

OUO6043,0001520 -19-25OCT01-1/1
