Lowering Picking Units

Using unit lift/lower-all units switch (A) on hydro lever, lower units. This will activate the height sensing system. To lower units press left-side of switch. To raise units press right-side of switch.

The unit height sensing shoes will maintain the proper unit-to-ground clearance. For adjustment, see HEIGHT SENSING section.

Unit lift/lower left-hand frame switch (B) and unit lift/lower right-hand frame switch (C) will raise and lower units (units mounted on left-hand unit frame and right-hand unit frame), but the height sensing system WILL NOT be activated. Only the all units switch (A) activates height sensing system. See HEIGHT SENSING section.

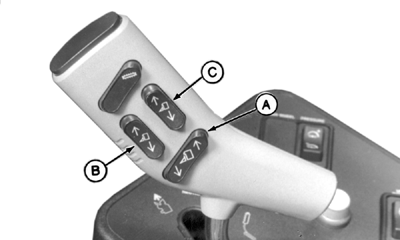

A-Lift/Lower-All Units Switch
B-Lift-Lower Left-Hand Frame Switch
C-Lift/Lower Right-Hand Frame Switch
