Unloading Basket

causym CAUTION: To avoid serious injury or death to you or others, DO NOT unload basket if the following conditions exist:

  • If picker can come in contact with electrical wires.

  • If picker is on a slope.

  • If anyone can come in contact with conveyor basket.

  • If anyone is around picker.

1. Reduce engine speed to slow idle.

2. Disengage picking units and fan.

3. Move picker into position.

4. Increase engine speed to fast throttle position.

TS683
N51101
N51102

OUO6043,0001524 -19-25OCT01-1/2


5. Use basket dump switch (A) to raise basket.

6. Activate conveyor with conveyor switch (B).

7. After unloading, lower basket with basket dump switch.

8. Reduce engine speed.

9. Perform periodic service. See LUBRICATION AND MAINTENANCE section.

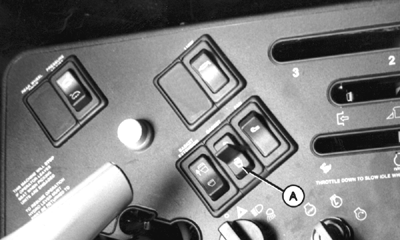

A-Basket Dump Switch

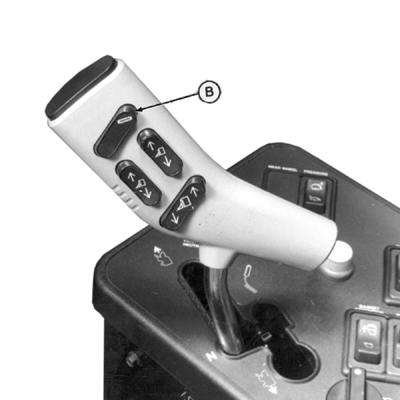

B-Conveyor Switch
