OMN300069: 9970 Cotton PickerP.I.N. N09970X012001—, Block File: OUO6043_0001527_19

Raising Telescoping Basket

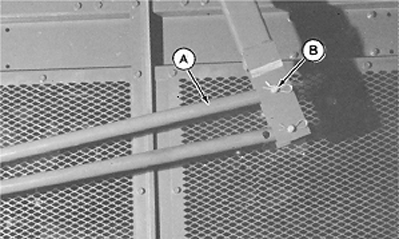

1. Remove spring pin (A). Retract and lock-out front left-hand basket pin.

A-Spring Pin

OUO6043,0001527 -19-25OCT01-1/11

2. Connect duct lift chains to lid linkage frame (A) by sliding bolt (B) into slot (C). (Washer MUST be on top surface of linkage frame.)

A-Lid Linkage Frame
B-Bolt
C-Slot

OUO6043,0001527 -19-25OCT01-2/11

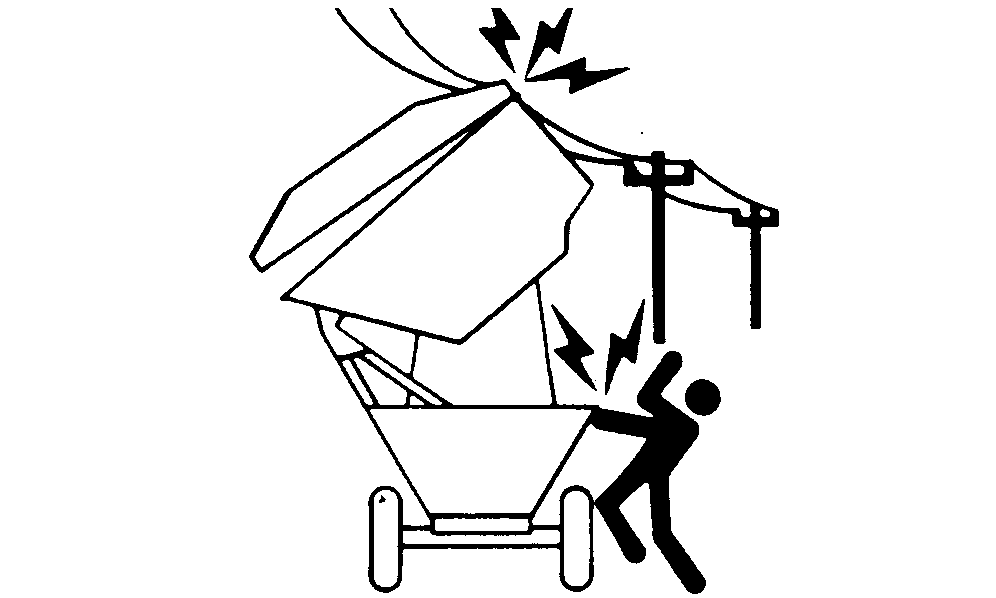

causym CAUTION: If basket should come in contact with overhead electrical wires, serious injury or death to you or others can occur. Be certain of adequate overhead clearance before raising basket extension.

3. Raise basket extension by pressing upper portion of basket extension switch (A). Stop raising extension slightly below desired pinned location (intermediate or full position).

A-Switch

OUO6043,0001527 -19-25OCT01-3/11

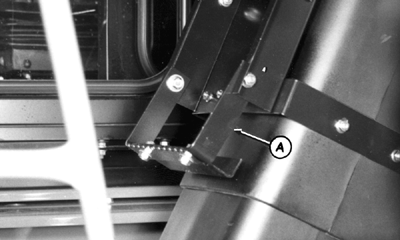

4. Unfold duct ladder step (A).

A-Duct Ladder Step

OUO6043,0001527 -19-25OCT01-4/11

5. Release duct support pins (A) both sides. Place left-hand basket lock-up pin in disengaged position.

6. Continue raising basket until duct support pins engage in desired (upper or lower) holes. Make sure pins engage into holes of duct support.

NOTE: If pins do not engage, adjust lock nuts (B) on chain bolts until duct support pins snap into the duct support holes.

A-Duct Support Pins
B-Lock Nuts

OUO6043,0001527 -19-25OCT01-5/11

7. Slightly lower basket extension to put slack in duct support chains.

IMPORTANT: Remove duct support chains or damage will occur duct supports and bracket when basket unloads.

8. Remove bolt (B) from slots (C) in lid linkage tube (A). Wrap chain (D) around duct support pipe (E).

9. Continue to raise lid until basket pin snaps into place.

10. Release front left-hand basket pin so it is spring loaded.

11. Retain pin with spring locking pin.

A-Lid Linkage Tube
B-Bolt
C-Slot
D-Chain
E-Duct Support Pipe

OUO6043,0001527 -19-25OCT01-6/11

IMPORTANT: NEVER leave basket in telescoped position without pins engaged. Basket can come down if pins are not engaged.

12. On right-hand front and rear basket corners, remove quick-lock pins (A) (three locations). Push lower lock-up beam (B) over pin (three locations). Reinstall quick-lock pins.

A-Quick-Lock Pins
B-Lower Lock-Up Beam

OUO6043,0001527 -19-25OCT01-7/11

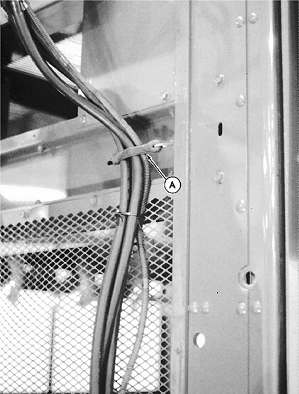

13. Attach basket hydraulic hoses to conveyor channel using straps (A).

A-Straps

OUO6043,0001527 -19-25OCT01-8/11

NOTE: If machine is equipped with a basket unload extender, perform the following steps. If machine does not have a basket unload extender, proceed to step 17.

14. (Machines with basket unload extender) Attach front unload extender link (A) using pin (B).

A-Front Unload Extender Link
B-Pin

OUO6043,0001527 -19-25OCT01-9/11

15. Install upper link (A) and retain with hook.

A-Upper Link

OUO6043,0001527 -19-25OCT01-10/11

16. Reposition units as they were positioned previous to transport.

NOTE: If necessary to reposition upper duct(s), follow steps 17 through 20.

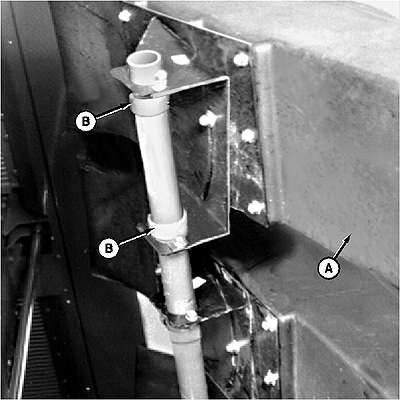

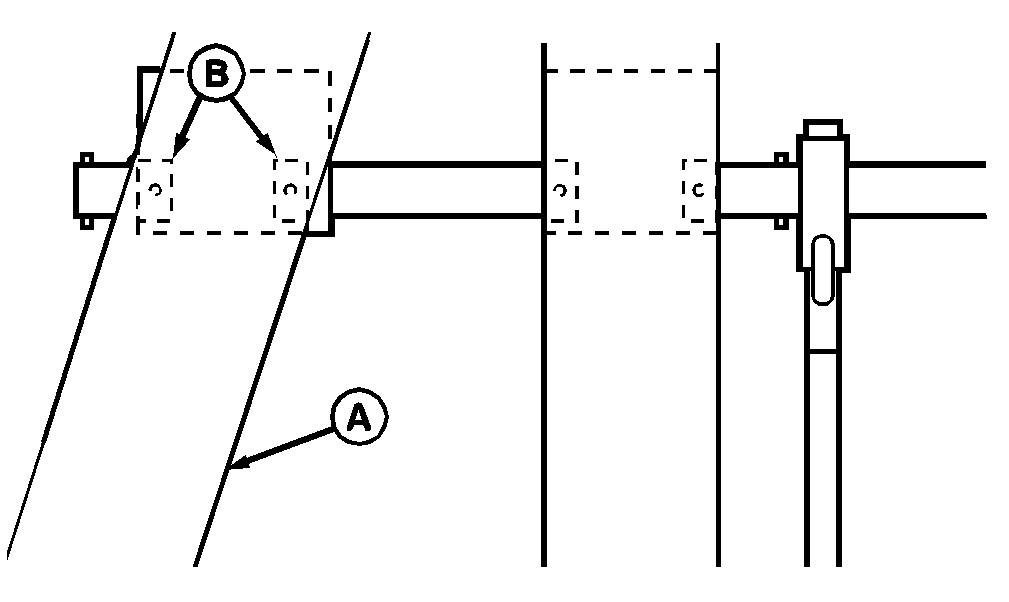

17. Loosen set screws in retaining rings (B).

18. Locate the upper duct (A) left or right so it is in the best position to deliver cotton to the basket and to avoid interference with support pipe.

NOTE: Locate remaining upper ducts in a similar manner if necessary.

19. Tighten retaining ring set screws to lock duct in position so it does not slide right or left.

20. If retaining rings were loosened before lowering the telescoping basket, tighten retaining rings.

A-Upper Duct
B-Retaining Rings

No. 4 & No. 3 Duct

OUO6043,0001527 -19-25OCT01-11/11
