Leveling Standard Height Sensing Shoes

IMPORTANT: Before adjusting height sensing on units, adjust the tilt of picking units. See PICKING UNITS section. Failure to adjust picking units can result in damage to units or machine.

NOTE: If equipped with optional inner unit height sensing, verify all shoes are level.

2. Remove cap screw (B).

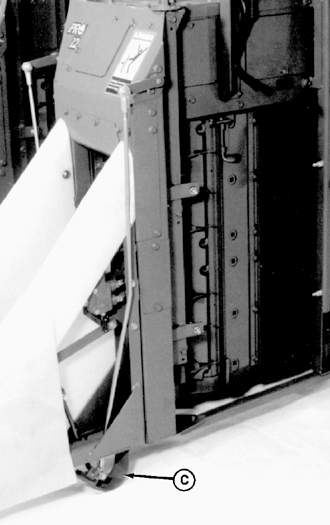

3. Adjust linkage until inside and outside shoes (C) are level.

NOTE: Before installing cap screw, verify a minimum of three threads are engaged in linkage end.

4. Install cap screw and tighten lock nut.

5. Check that shoes are level. If more adjustment is required, repeat process on opposite end of linkage.

A-Lock Nut
B-Cap Screw
C-Outside Shoes

OUO6043,000152D -19-25OCT01-1/1
