Adjusting Solution Pump Belt

1. Loosen lock nuts (A).

IMPORTANT: To avoid pump damage, do not let pump run without solution in system. Always remove belt for dry picking.

2. Align belt (B) with sheaves by loosening pump mounting bolts (C) and moving pump or by loosening pump sheave set screw (D) and moving sheave.

IMPORTANT: To avoid bearing damage, DO NOT overtighten solution drive belt. When tightened properly belt should be easily deflected with thumb and forefinger.

3. Tighten belt to specifications using nuts (C).

Specification

Solution Pump Belt -Static Tension 67›85 N (16›19 lb)

4. Tighten all loose hardware.

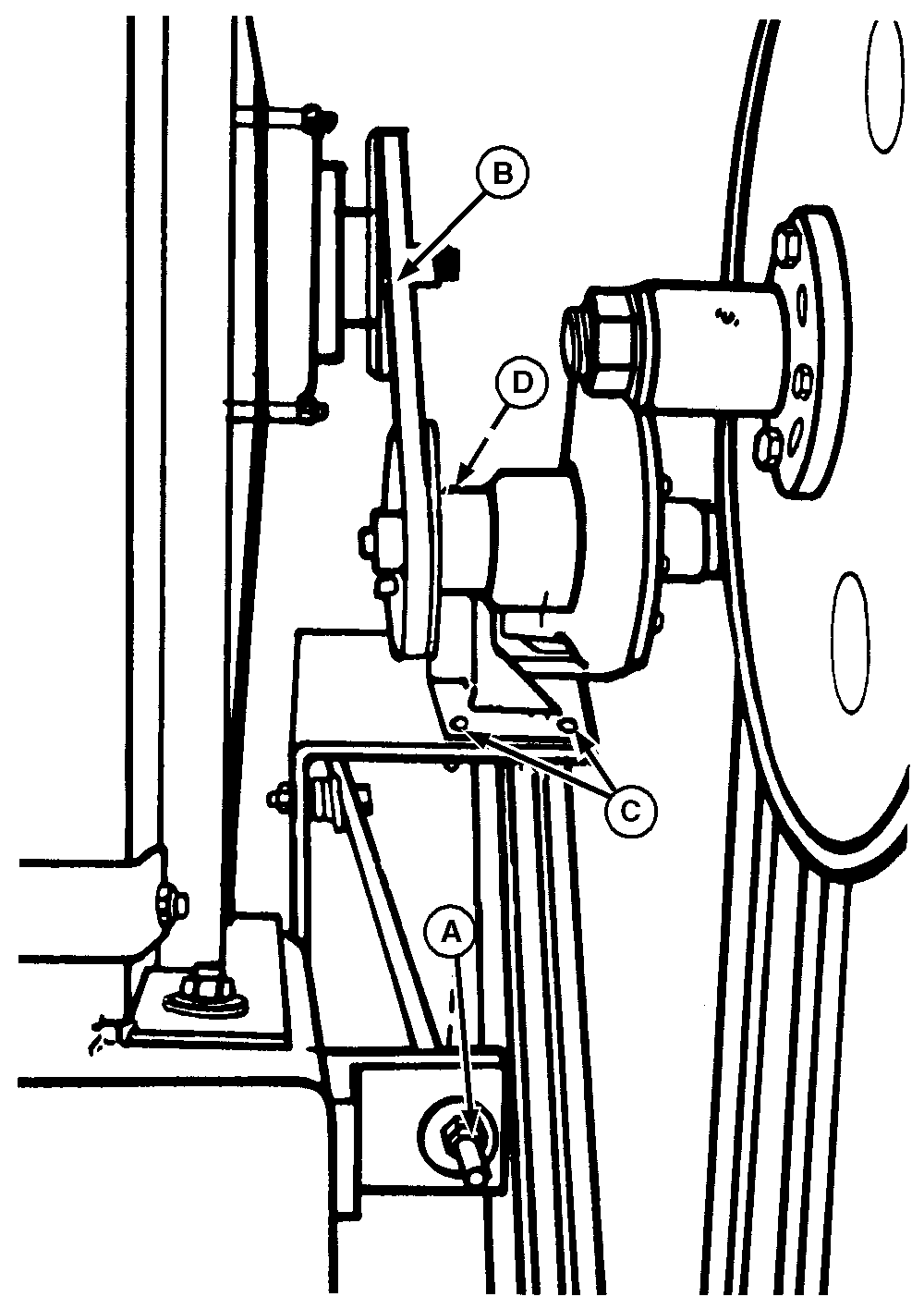

A-Lock Nuts
B-Belt
C-Mounting Bolts
D-Set Screw
