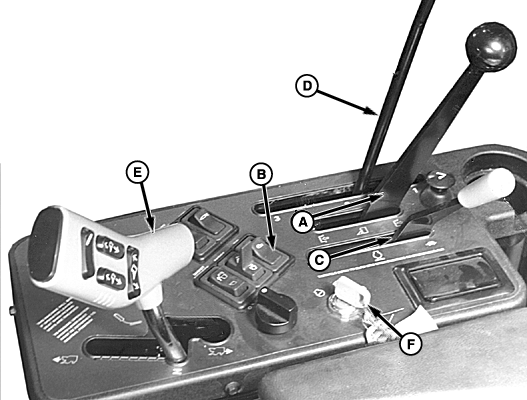

A-Row Units Lever
B-Fan Switch

C-Throttle Control Lever
D-Transmission Lever

E-Hydro Lever

F-Key

When an obstruction enters a picking unit, the drum clutch will slip causing the monitor indicator light to glow, the stop light to come on and the alarm to sound. When this happens:

2. Pull lever (A) back to disengage row units.

3. Disengage fan using switch (B).

4. Raise units partially.

5. Back the picker up 1 to 2 m (3 to 6 ft).

6. Pull lever (C) back to idle throttle.

7. Place transmission lever (D) and hydro lever (E) in "Neutral".

8. Set PARK brake (not shown).

9. Lower units to the ground or install unit safety stops.

10. Turn key (F) to OFF position and remove.
