Remove Doffer Column

causym CAUTION: Units are heavy. If a unit falls, serious injury or death to you or others can occur. Lower unit safety stops over cylinder rods before working under units.

1. Remove cap screws (A).


A-Cap Screws

N51100
N92336D1

OUO6043,000153A -19-25OCT01-1/4

2. Loosen nut (B).

3. Turn adjusting screw (A) counterclockwise until adjusting screw is fully raised off stub shaft.


A-Adjusting Screw
B-Nut

N42178RS

OUO6043,000153A -19-25OCT01-2/4

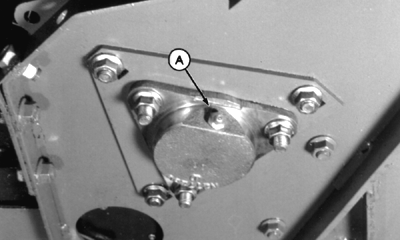

4. Remove grease fitting (A) from lower bearing housing.


A-Grease Fitting

N42169FY

OUO6043,000153A -19-25OCT01-3/4

IMPORTANT: Do not loosen adjusting plate cap screws (B) or complete realignment will be required.

5. Remove three nuts and flange screws (A).

6. Remove lower bearing housing.

7. Remove doffer column.


A-Flange Screws
B-Adjusting Plate Cap Screws

N92336E2
N42169JA

Underside View

OUO6043,000153A -19-25OCT01-4/4
