Unit Monitor Display Functions

Unit monitor display indicators will inform the operator of the following:

• unit drive idler clutch slippage
• main unit clutch slippage
• restricted suction door or duct
• abnormal unit speed
• normal operation

IMPORTANT: If an indicator light (for a stopped drum or plugged unit door) should come on, "STOP" light (B) will flash and a continuous pulsed alarm will sound. Stop machine immediately, disengage units and determine problem.

NORMAL indicator (A) is on when all systems function properly.

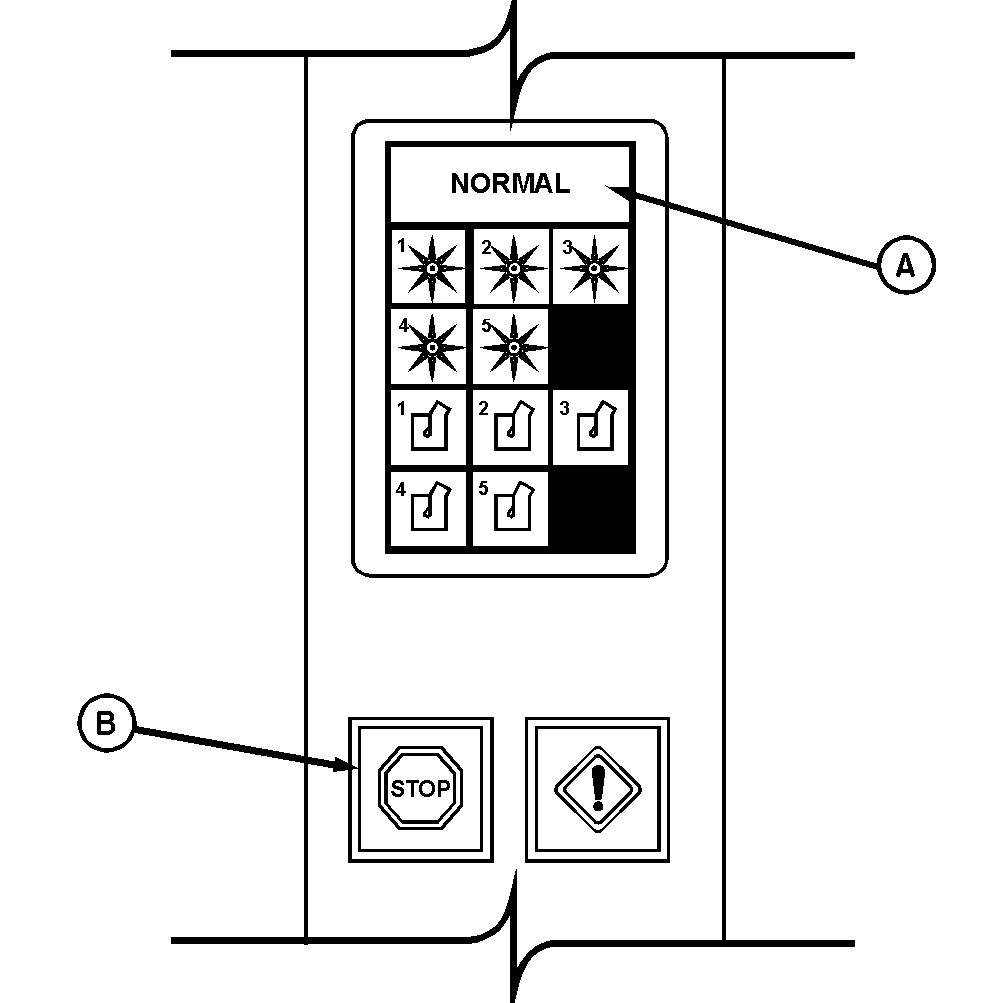

A-NORMAL Indicator
B-STOP Light
