Deactivate Inspection Bypass and Lube System
 CAUTION:
Keep away from all moving parts. Be sure to keep thumb free of tether switch. NEVER operate the inspection bypass while standing on top of row units or you or others can fall and become entangled in moving parts of unit causing serious injury or death to you or others.
1.
Place tether switch in storage position (A). Close unit plate.
2.
Move hydro lever (B) to neutral position.
3.
Disengage picking unit with lever (C).
4.
Turn off lube switch (D).

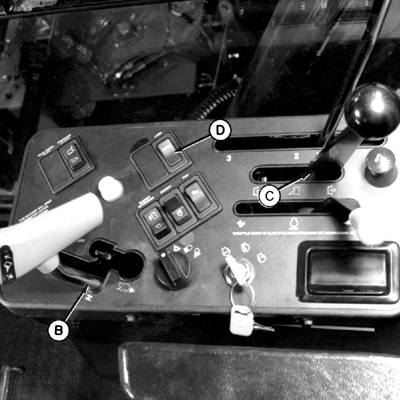

A-Tether Switch in Storage Position
B-Hydro Lever
C-Lever
D-Lube Switch
|
