Every 250 Hours of Operation

N51069

NOTE: If using PLUS-50 ™ oil, service interval can be extended by 50 %.

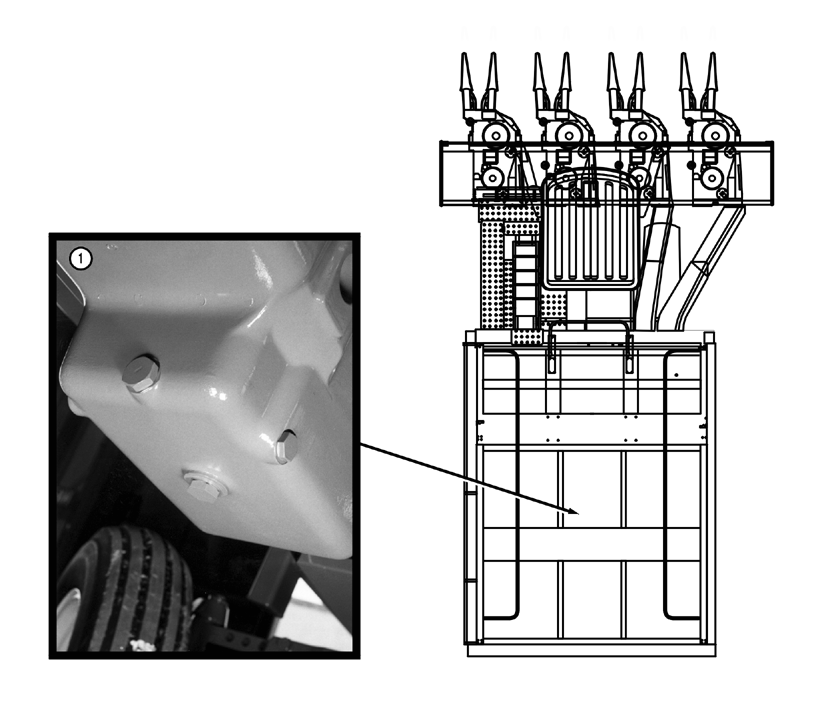

1. Remove plug to drain crankcase oil. Replace crankcase drain plug. Replace engine oil filter while changing oil. Clean filter mounting pad, apply oil to gasket, and install new element. Hand tighten only.

Install proper amount of engine oil. See DIESEL ENGINE OIL in this section. See SPECIFICATIONS section for oil capacity.

PLUS-50 is a trademark of Deere & Company.

OUO6043,000155C -19-25OCT01-1/3

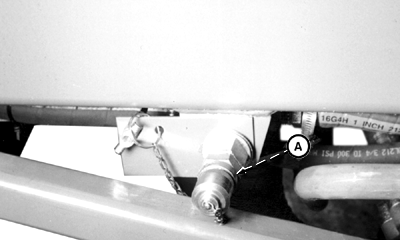

2. Clean and/or replace lubrication system filters (A). See ONBOARD LUBE SYSTEM section.


A-Filters

N42189SA

OUO6043,000155C -19-25OCT01-2/3

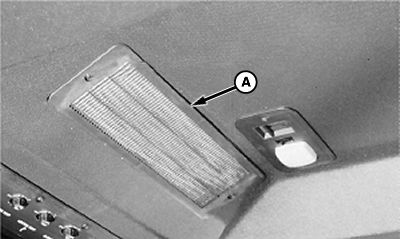

3. Clean or replace secondary (recirculating) cab air filter (A). See REMOVING SECONDARY (RECIRCULATING) CAB AIR FILTER in CAB AND AIR CONDITIONING section.


A-Secondary (Recirculating) Cab Air Filter

N58597

OUO6043,000155C -19-25OCT01-3/3
