Saw Replacement (Saw Drum in Cabinet)

1. Remove cabinet door.

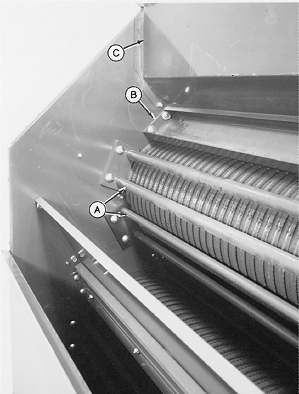

2. For upper saw drum, remove both sets of grid bars (A), feed control channel (B) and feed door (C).


A-Grid Bars
B-Feed Control Channel
C-Feed Door

N86157Q1

NXL,7455,P21 -19-28MAR97-1/4

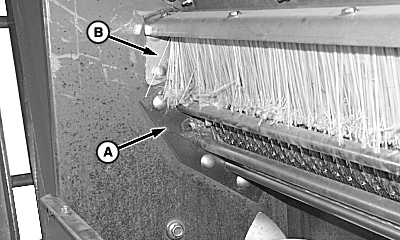

3. For lower saw drum, remove grid bars (A) and brush holder panel (B).


A-Grid Bars
B-Brush Holder Panel

N62031

NXL,7455,P21 -19-28MAR97-2/4

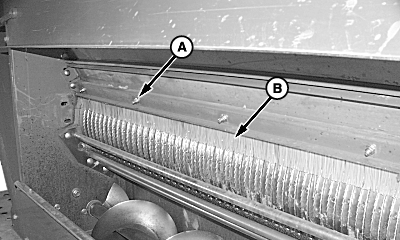

4. Remove six nuts (A) and brush (B).


A-Nuts (6 used)
B-Brush

N62030

NXL,7455,P21 -19-28MAR97-3/4

causym CAUTION: Saw blades are extremely sharp and can cause serious injury or death to you or others. Wear leather gloves when servicing saws to prevent injury to yourself.

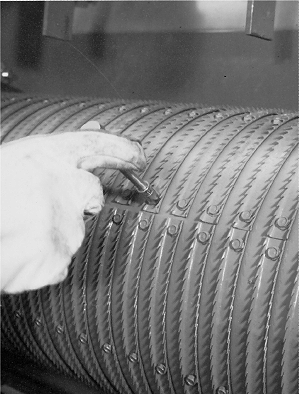

5. Remove five screws per saw blade to replace. Center screws in blade slots during assembly.

NOTE: If attaching holes have been enlarged so original screws will not hold blades to drum, an oversized screw (N166555) is available from service parts.

6. Install grid bars, feed control channel, feed door and brush holder panel.

7. Set grid bar and feed control channel spacing. (See SET GRID BAR AND FEED CONTROL CHANNEL SPACING in this section.)

TS676
N86158I1

NXL,7455,P21 -19-28MAR97-4/4
