Changing to Grain Only Partition Position
NOTE:
Lids have been removed for clarity only.

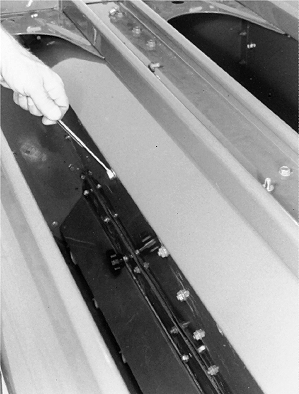

1.
Remove cap screws (A) and nuts from connecting strap to bulkhead in front box compartment (two places).
A-Cap Screws
|
|
|
|
AG,OUO1018,40 -19-31MAR99-1/8
|
|
2.
Remove cap screws (A) and nuts from center bulkhead and angles.
A-Cap Screws
|
|
|
|
AG,OUO1018,40 -19-31MAR99-2/8
|
|

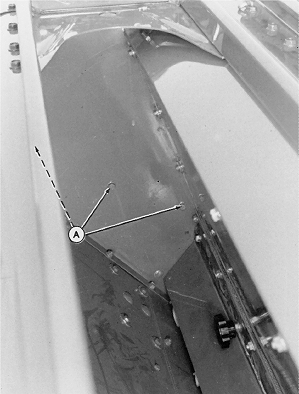

3.
Remove cap screws (A) from angle and end panel on each end of box.
A-Cap Screws
|
|
|
|
AG,OUO1018,40 -19-31MAR99-3/8
|
|

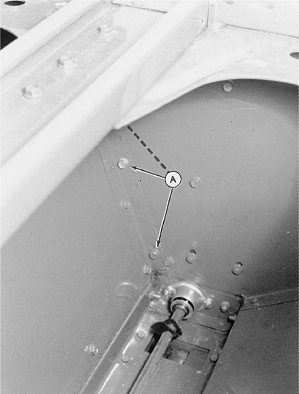

4.
Remove cap screws from divider panel and top deflector panel.
|
|
|
|
AG,OUO1018,40 -19-31MAR99-4/8
|
|
5.
Remove three end panel cap screws (A) from each end.
A-Cap Screws
|
|
|
|
AG,OUO1018,40 -19-31MAR99-5/8
|
|

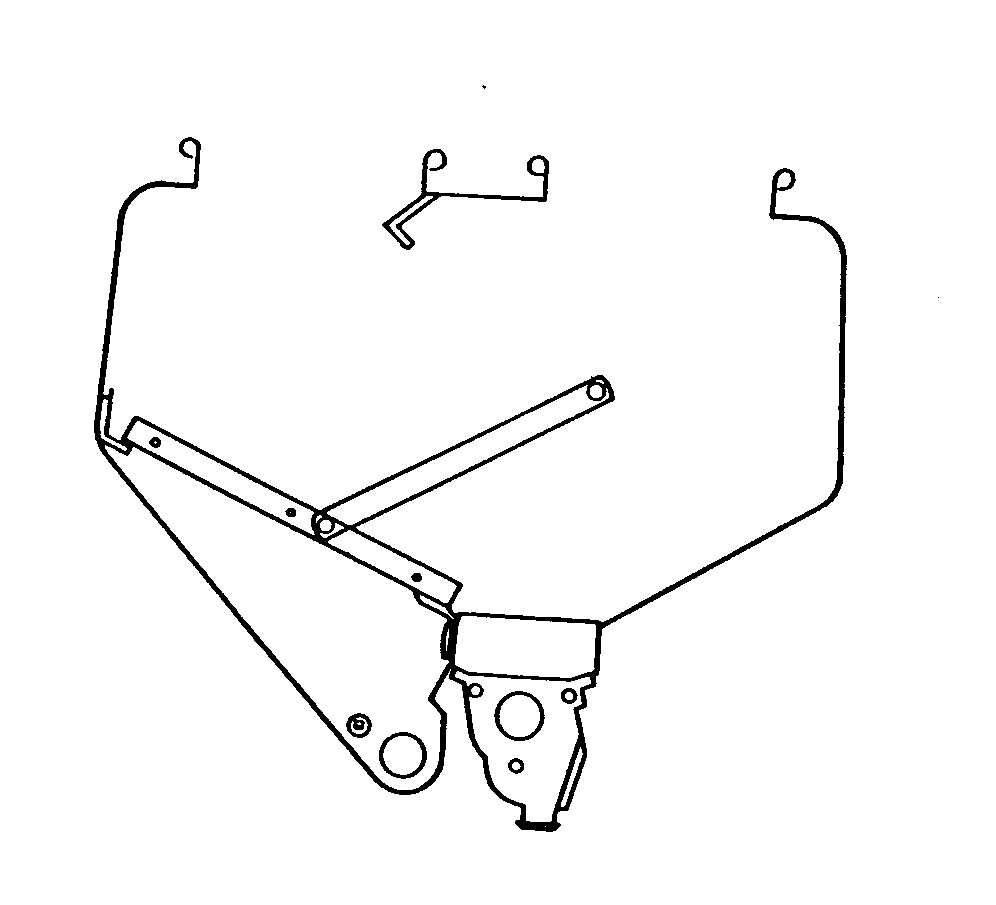

6.
Position divider panels (A) to the rear and down until it rests on rear sheet support angle (B). Install hardware.
7.
Install appropriate hardware into end panels and center bulkhead.
NOTE:
Be sure all hardware is installed in end panels.
A-Divider Panels
B-Rear Sheet Support Angle
|
|
|
|
AG,OUO1018,40 -19-31MAR99-6/8
|
|
8.
Install cap screw (A) and nut from back strap into bulkhead.
A-Cap Screw
|
|
|
|
AG,OUO1018,40 -19-31MAR99-7/8
|
|
9.
Loosen cap screws in angle (A) and divider panel, if panel wedging occurs. Tighten cap screws when movement is complete.
10.
Tighten all hardware. Reverse steps 1-10 to reset partition to 60% grain and 40% fertilizer position.
A-Angle
|
|
|
|
