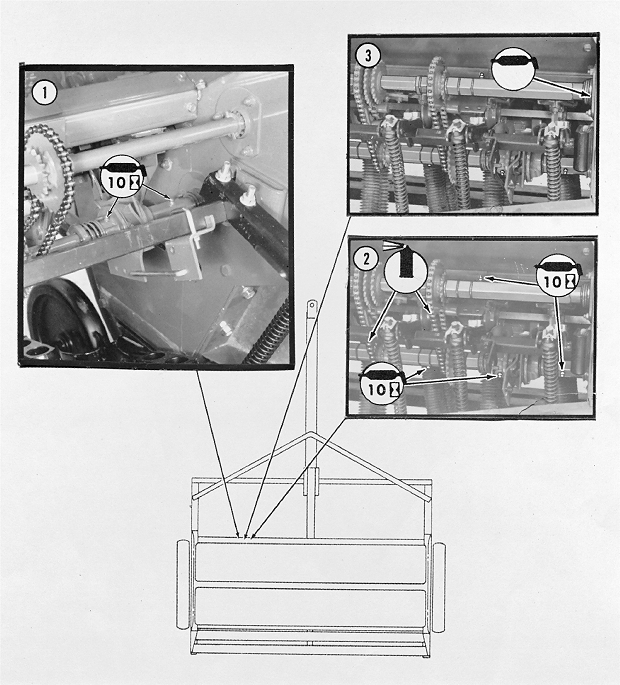

Lubrication Points

N89375B


1-Throw-Out Clutch

2-Drive Tubes and Chains

3-Drive Shaft Bearings (Before Storage)



AG,OUO6074,1003 -19-09MAY00-1/2

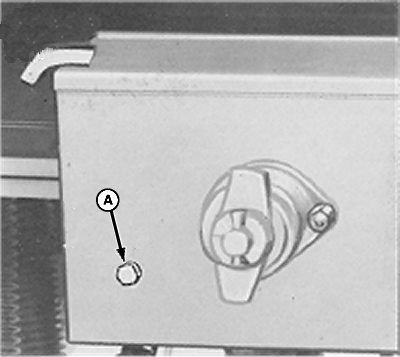

Remove gear case level screw (A) annually to check oil level. If no oil runs out, add oil through the hole or by removing the top cover. If water or dirt contaminates oil, remove plug from bottom of gear case and change oil.


A-Screw

N59431
N59432

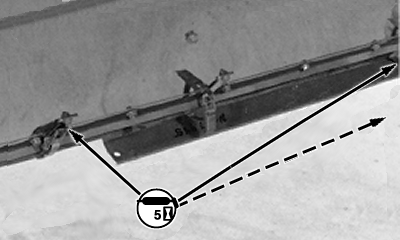

Gang Press Attachment

N59433

Fertilizer Feed Shaft Bearings

AG,OUO6074,1003 -19-09MAY00-2/2
