Check Feed Shaft Rolling Torque

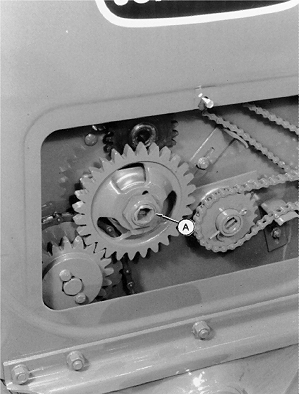

The rolling torque of the feed shaft (A), with or without the agitator, should be no more than 23 N·m (17 lb-ft). Check after removing countershaft gear.

If necessary check feed cups and drive hub alignment.

A-Feed Shaft

AG,OUO6074,1011 -19-09MAY00-1/1
