Tighten Drive Chains

For All Drills:

1. Rotate main drive chain tightener (E) into chain.

2. Loosen cap screws inside box and move primary tightener (C) up.

3. If box is full, tighten chain with secondary tightener (B) by moving it into the chain. As soon as the primary tightener cap screws are accessible, loosen the secondary tightener, tighten the primary to the end of its slot then use the secondary tightener.

4. Move fertilizer feed shaft chain tightener (G) up to tighten fertilizer feed shaft chain.

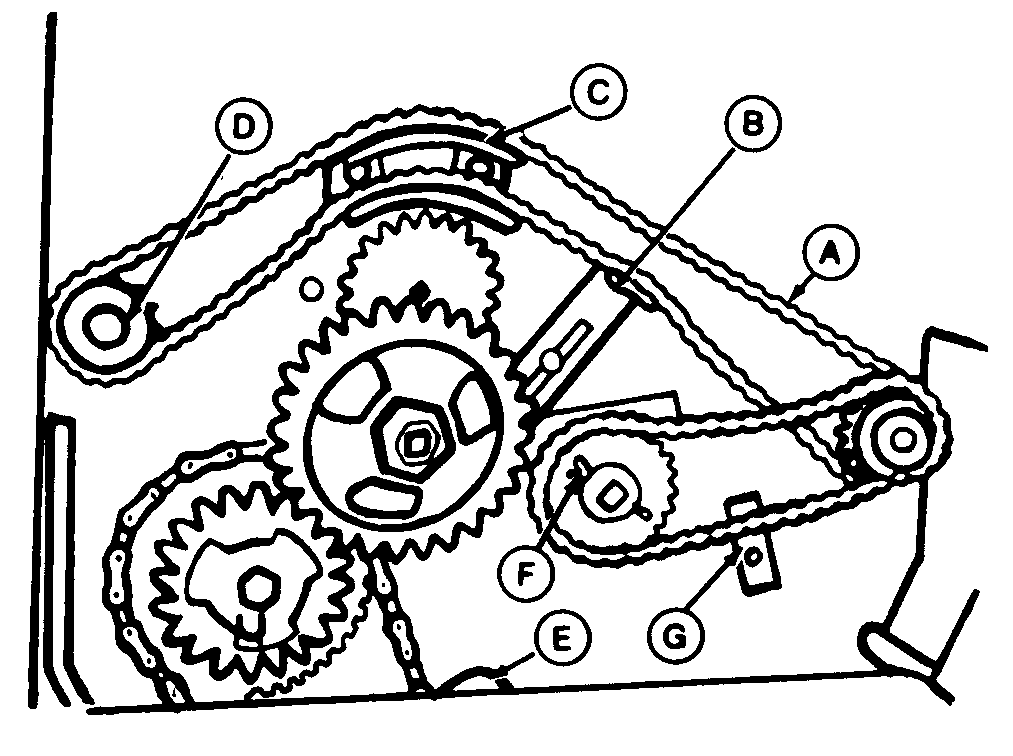

N89377A

End Panel Removed (For Clarity)


A-Fertilizer Gear Case Drive Chain
B-Secondary Tightener
C-Primary Tightener
D-Countershaft Sprocket
E-Main Drive Chain Tightener
F-Fertilizer Shaft Shear Pin
G-Fertilizer Feed Shaft Chain Tightener

AG,OUO6074,1014 -19-09MAY00-1/1
