Attaching Machine to Tractor

1. Adjust jackstand (A) to align machine hitch with tractor drawbar.

2. Back tractor up and attach machine hitch to tractor drawbar with hitch pin.


A-Jackstand

N89151L

AG,OUO6074,904 -19-09MAY00-1/5

3. Remove jackstand lock pin. Turn jackstand (A) 90 degrees (into field position), and replace lock pin.

4. If machine is equipped with hydraulic lift or row-markers, route hoses (B) to tractor.

5. If machine is equipped with row-marker selector control, plug wiring harness into electrical outlet.


A-Jackstand
B-Hydraulic Hose

N89156S

AG,OUO6074,904 -19-09MAY00-2/5

causym CAUTION: Escaping fluid under pressure can penetrate the skin, causing serious injury to you or others. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hand and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result.

causym CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly and replace as necessary.

6. Connect lift hoses to SCV I (A).

7. Connect marker hoses, if equipped, to SCV II.


A-SCV I

X9811
RW5887

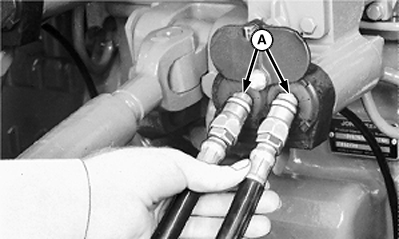

With Mechanical SCV Controls

RW21240

With Mechanical SCV Controls

RW55304

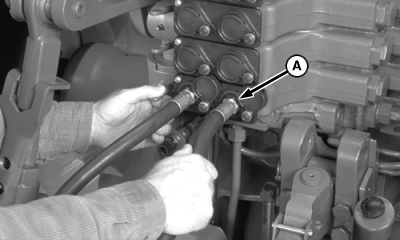

With Electro/Hyd. SCV Controls

AG,OUO6074,904 -19-09MAY00-3/5

8. Attach warning light plug to tractor seven-terminal electrical outlet. (If not so equipped, RE17282 Kit-Field Instruction 7- Terminal Auxiliary Electric is required on towing tractor.)

RW20845

Seven-Terminal Electrical Outlet

AG,OUO6074,904 -19-09MAY00-4/5

causym CAUTION: A runaway machine could cause injury or death to you or others. A safety chain will help control drawn equipment should it accidentally separate from the drawbar while transporting. Using the appropriate adapter parts, attach the chain to the tractor drawbar support or other specified anchor location. Provide only enough slack in the chain to permit turning.

9. Attach safety chain from tractor drawbar support (A) to machine hitch (B).

N84201C1


A-Drawbar Support
B-Drill Hitch
