Setting Feed Cups

NOTE: Set all cups identically. Each side has ten different lever notches (B) (1-10 on small side of feed wheel and 11-20 on large side of feed wheel). The higher the number the greater the rate of coverage.

Position lock lever (A) in proper notch (on side of wheel to be used). See double-run seed charts in this section.

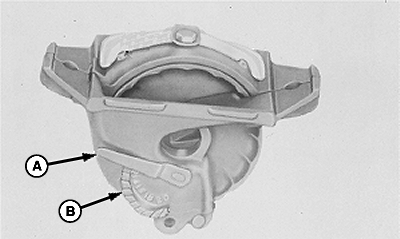

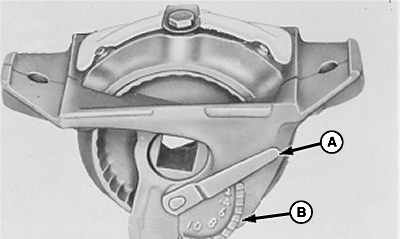

A-Lock Lever
B-Notches

AG,OUO6074,940 -19-09MAY00-1/1
