Setting Double-Speed Drive

IMPORTANT: If machine has drive gears in both ends of box, make certain they are set the same.

DOUBLE-SPEED can be achieved by reversing the 28-tooth (A) and 20-tooth (B) gears in ends of seed box.

Tighten feed shaft nut (C) to specifications.

Specification

Feed Shaft Nut -Torque 140-170 N·m (100-125 lb-ft)

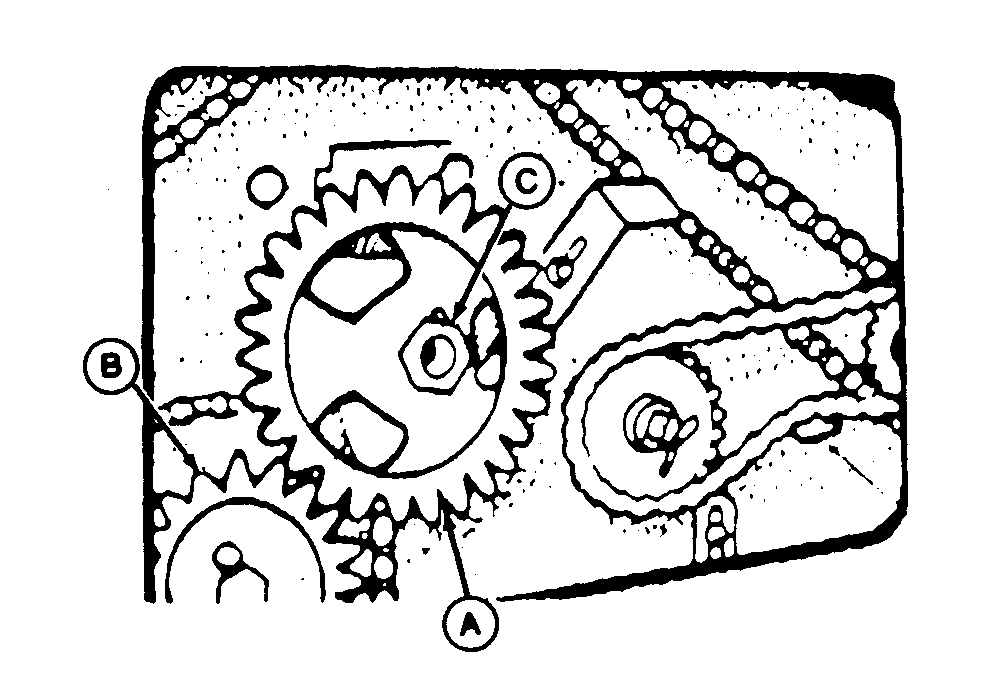

N42119O


A-28-Tooth
B-20-Tooth
C-Feed Shaft Nut
