Checking Feeds

1. If machine has been standing for a long period of time, (before adding seed) turn feed shaft(s) with a wrench in the direction it normally turns.

causym CAUTION: Be careful when using diesel fuel. Fuel might explode and injure someone. Use only in well-ventilated areas, away from any sparks or flames.

IMPORTANT: Do not allow diesel fuel (or any other petroleum product) to contact rubber convoluted tubes as it causes deterioration.

2. If feed shaft turns hard, loosen moving parts with diesel fuel.

AG,OUO6074,960 -19-09MAY00-1/2

3. If unable to rotate shaft freely, remove spring pin in drive sprocket (A) OR loosen chain tightener (B) and remove drive chain.

4. Rotate shaft daily during season. When using treated seed, turn whenever machine has been stationary for an hour or more.


A-Drive Sprocket
B-Chain Tightener

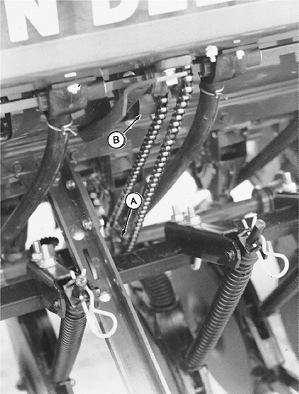

N89159O

Fluted-Feed

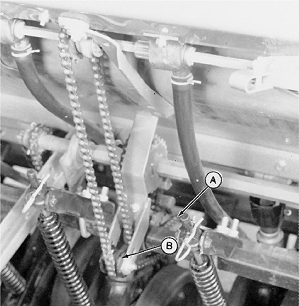

N89241E

Double-Run

AG,OUO6074,960 -19-09MAY00-2/2
