Adjusting Transport Lift Height for Gang Press Attachment

IMPORTANT: When openers are fully raised (for transport), press wheel leaf springs should contact rear edge of footboard firmly enough to prevent excessive bouncing, but not so firm as to cause damage to springs or lift linkage.

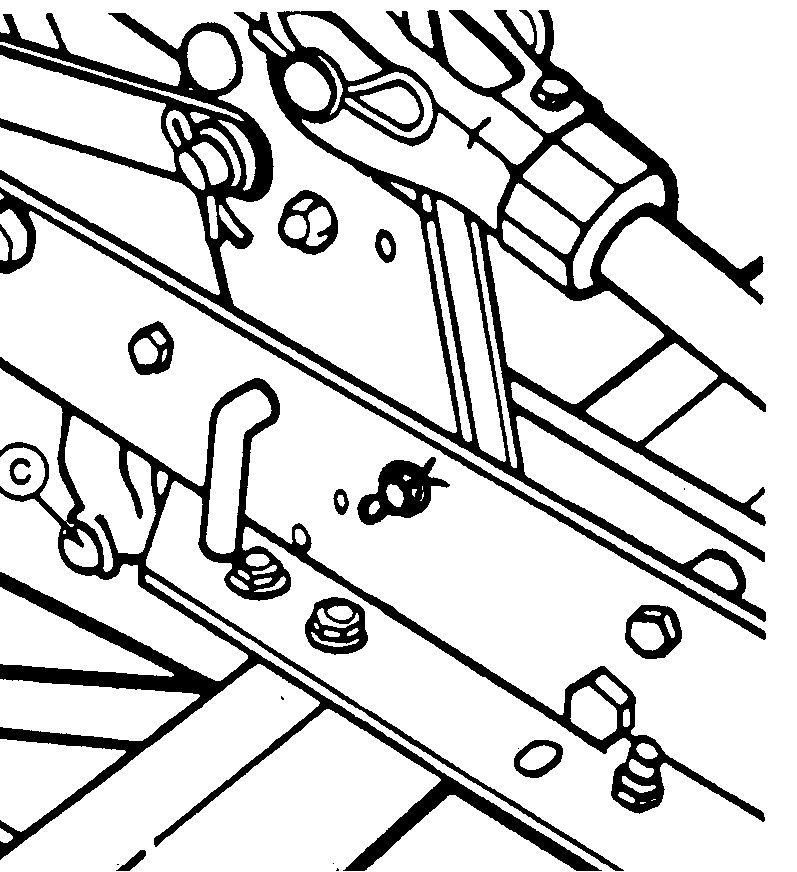

1. To decrease or increase lift height; loosen lock nut (A) on eyebolt (B). Remove drilled pin (C) (shown removed) from front of lift pipe.

2. Lengthen or shorten lift pipe to achieve desired height; then replace drilled pin and tighten lock nut.
