Row Marker Selector Valve

(Machines With Rear-Mounted Markers) An optional selector valve is available. It provides an independent drop for dual marker system. This system will allow continuous planting without interference from field obstructions. Mounting bracket is included with the bundle.

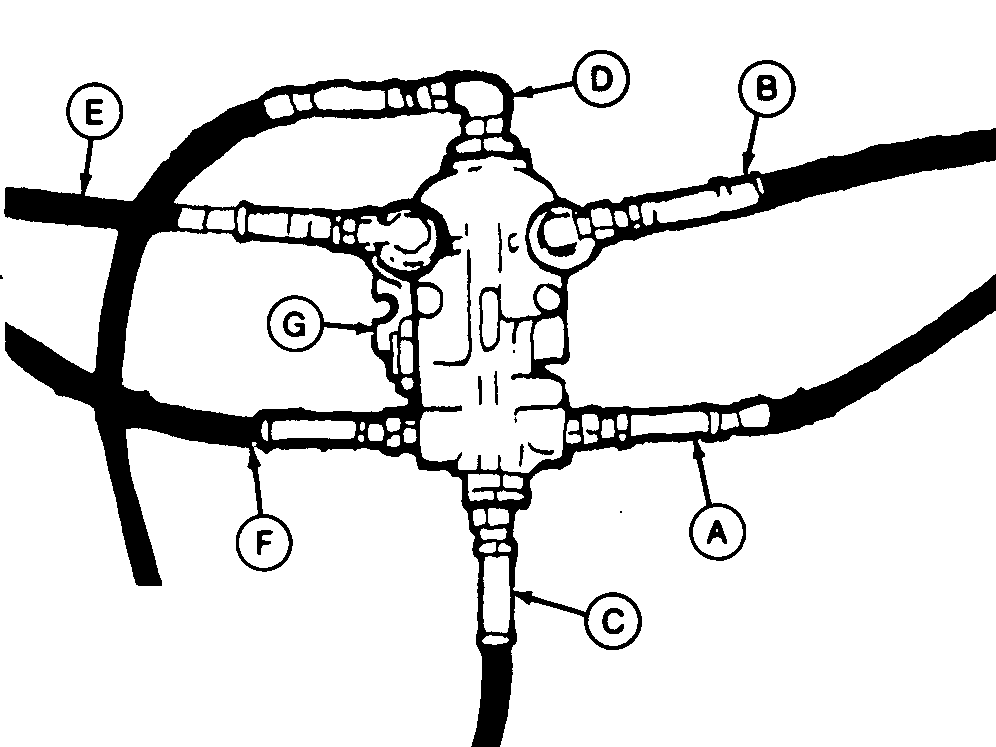

A-Butt of Cylinder (Left-Hand Marker)
B-Ram End of Cylinder (Left-Hand Marker)
C-Return Line from Tractor
D-Pressure Line to Tractor
E-Ram End of Cylinder (Right-Hand Marker)
F-Butt of Cylinder (Right-Hand Marker)
G-Mounting Bracket

AG,OUO6074,996 -19-09MAY00-1/1
