Adjusting Metering Valves-Tractors With Mechanical SCV (Selective Control Valve)

Turn metering valves (A) to fast position.

If equipped with detent selectors, turn SCV I and SCV II to no detent position (C). Lock position (B) and continuous detent position (D) are not used with this machine.


A-Metering Valves
B-Lock Position
C-No Detent Position
D-Continuous Detent Position

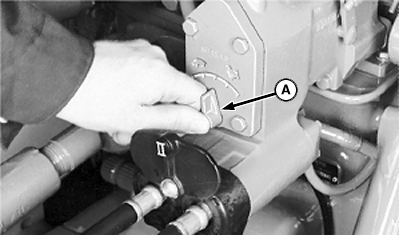

RW5885

With Mechanical SCV Controls

RW21395

With Mechanical SCV Controls

RW21754
RW21758

SCV Detent Selectors

OUO6074,000048B -19-04DEC01-1/1
