Replace Gauge Wheel Arm-TRU-VEETRU-VEE™ Attachment

Assemble cupped washers (A) as shown. Gauge wheel arm should pivot with just enough "drag" so that raised arms with wheels attached will not rotate downward until external force is applied. This typically requires pivot bolt (E) torque of 7-9 N·m (60-80 lb-in.). If slot in nut does not align with hole in bolt, add one flat washer (D) under slotted nut and tighten. Install cotter pin (C).


A-Cupped Washers, 4 Used
B-Slotted Nut
C-Cotter Pin
D-Flat Washer
E-Pivot Bolt

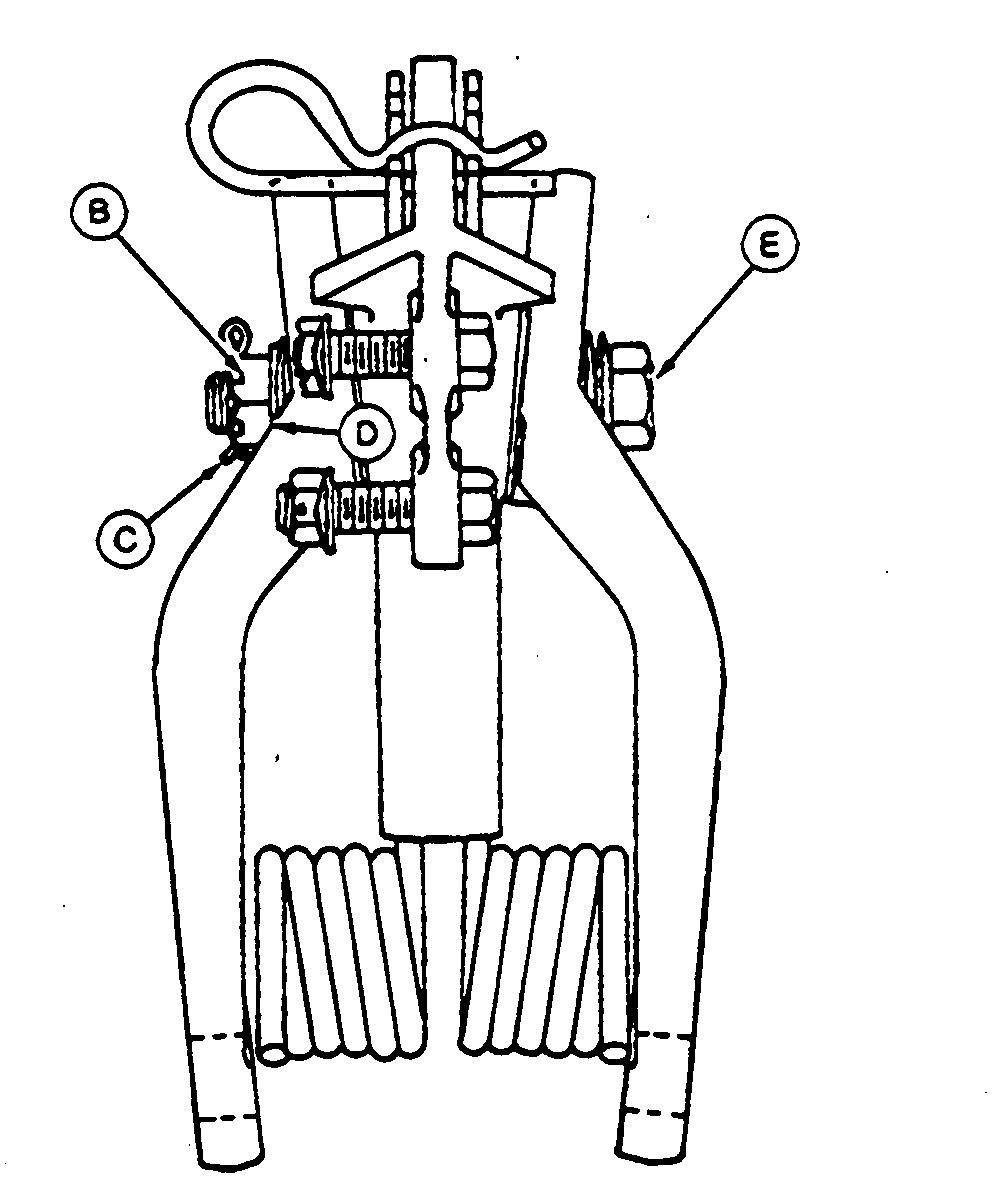

N36134

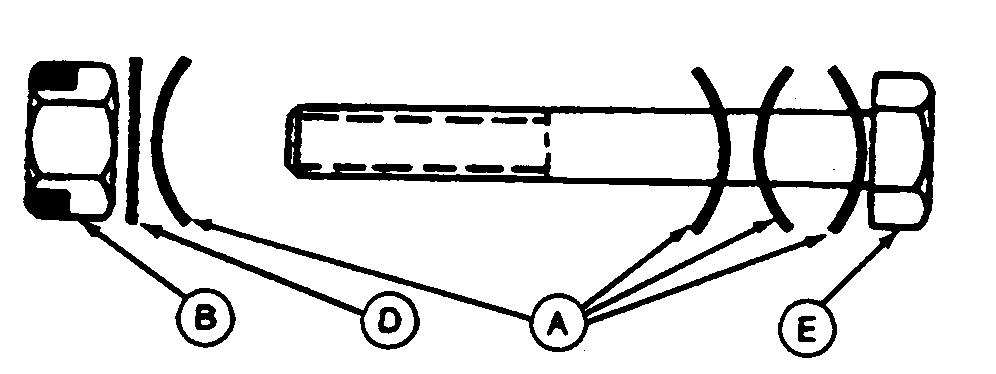

N36766

TRU-VEE is a trademark of Deere & Company.

OUO6074,00004F3 -19-07FEB02-1/1
