AG,OUO1018,191 -19-12APR99-1/2

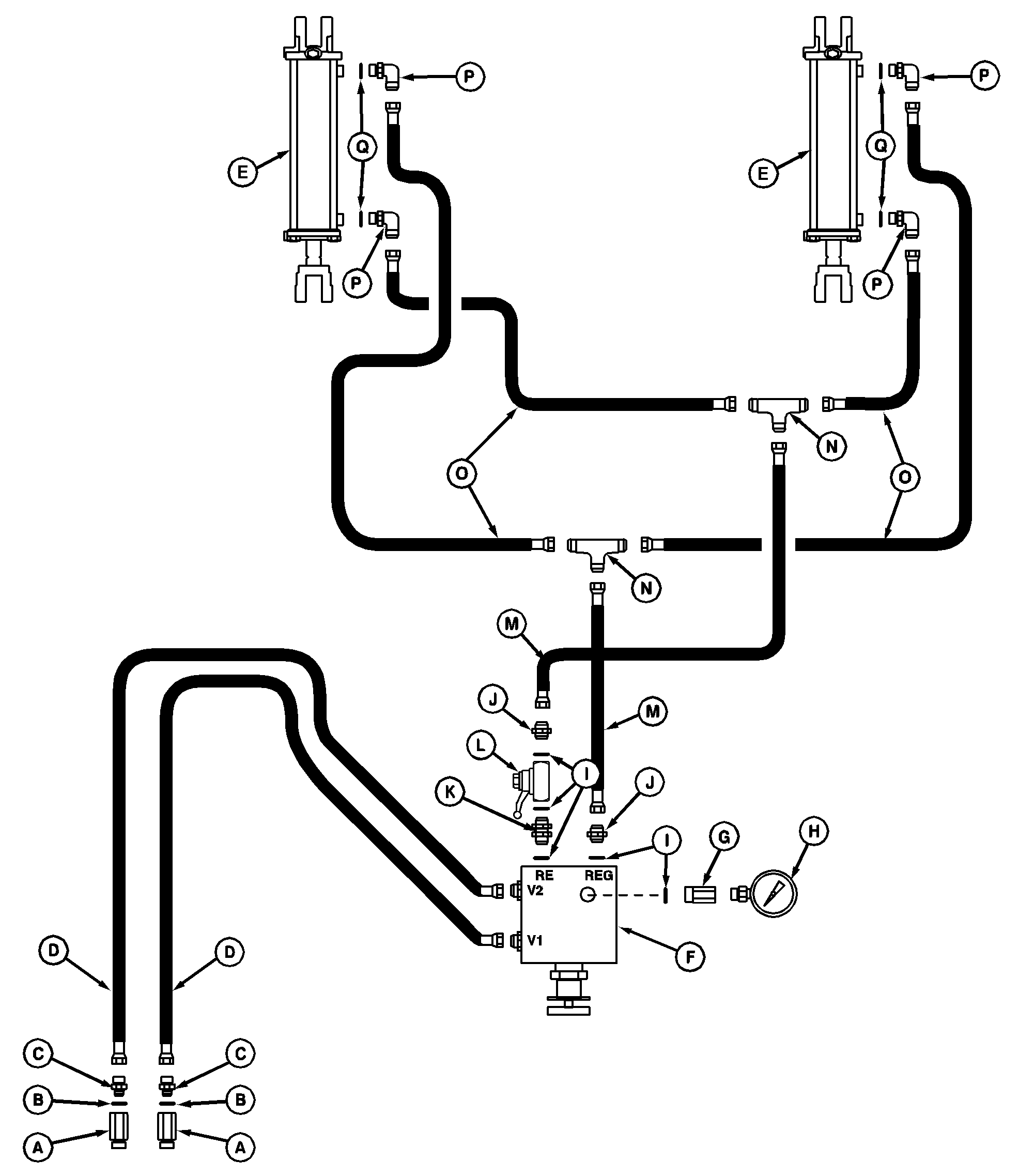

A-Coupler
B-O-Ring
C-Fitting
D-Hose 10 x 6909 mm (3/8 x 272 in.)
E-Cylinder 64 x 203 mm (2-1/2 x 8 in.)

F-Down-Pressure Valve
G-Adapter
H-Pressure Gauge
I-O-Ring
J-Fitting

K-Adapter
L-Valve
M-Hose 10 x 1219 mm (3/8 x 48 in.)
N-Tee Cross

O-Hose 10 x 3505 mm (3/8 x 138 in.)
P-Elbow Fitting
Q-O-Ring

AG,OUO1018,191 -19-12APR99-2/2
