Replacing Inside Scrapers

NOTE: Use scrapers to prevent dirt build-up in wet or sticky soil conditions. Remove scrapers in dry soil conditions. When installing scrapers, do not bend leaf spring together.

1. Replace scrapers by inserting T-bolt (C) in boot and turning 90 degrees. Tighten lock nut (D) so spacers (E) and (G) are tight against spring. If additional force is needed, add additional springs (B). Reinstall spring, spacer (F), and wing nut.

2. To remove scrapers, loosen wing nut and turn T-bolt 90 degrees and remove.


A-Scraper
B-Leaf Spring
C-T-Bolt
D-Lock Nut
E-Spacer (Scraper)
F-Spacer (Short)
G-Spacer (Block)

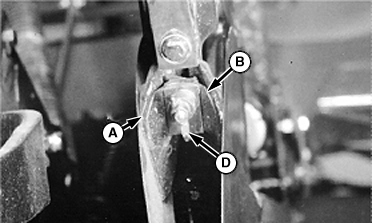

N42115DR

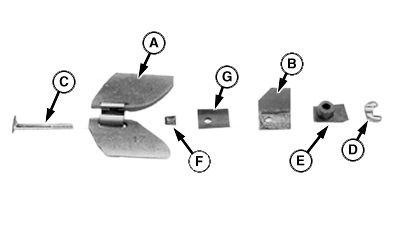

N86140K1

AG,OUO1018,89 -19-01APR99-1/1
