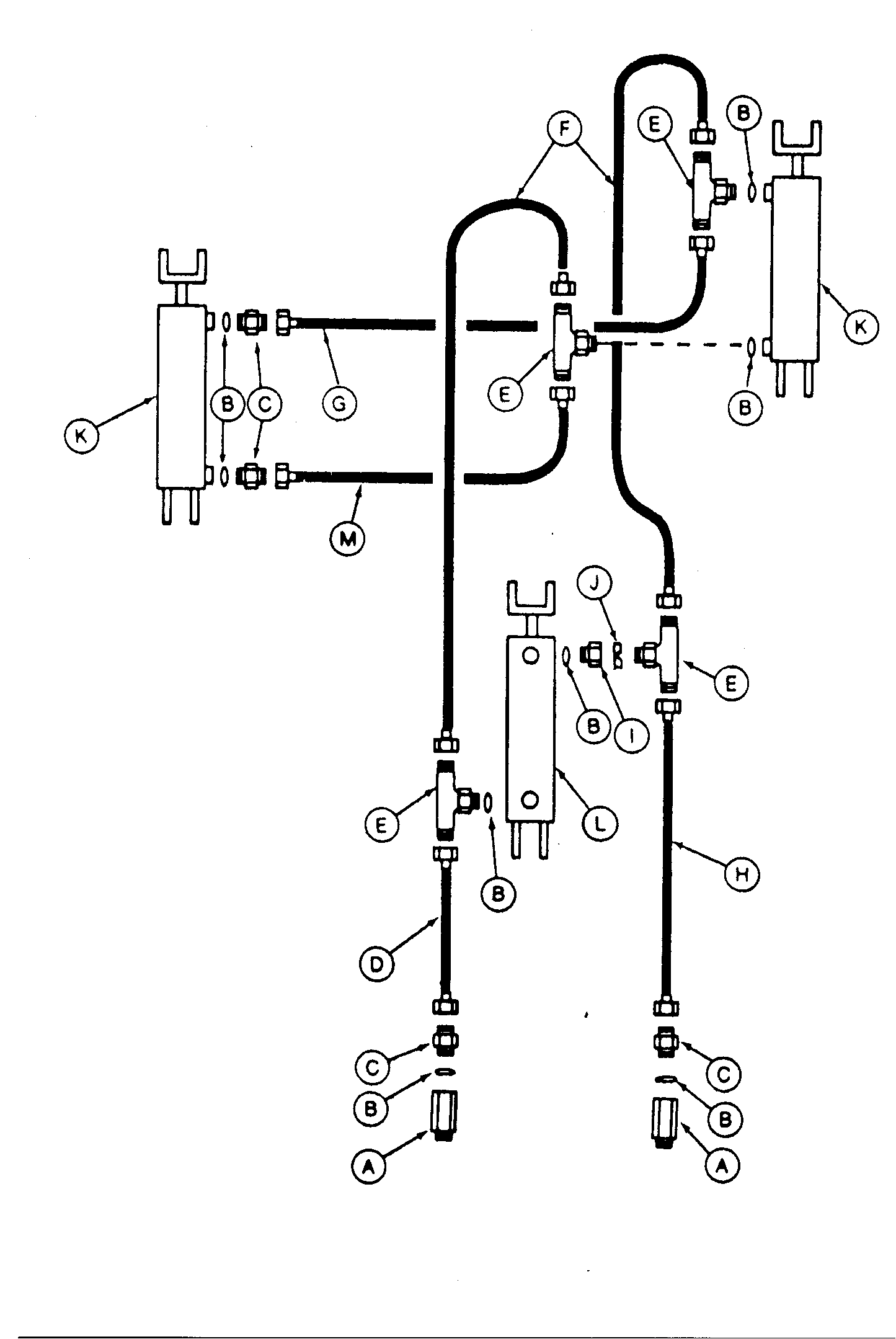

A-Coupler
B-O-Ring
C-Fitting
D-Hose 6 x 2997 mm (1/4 x 118 in.)
|
E-Tee Fitting
F-Hose 6 x 4293 mm (1/4 x 169 in.)
G-Hose 6 x 914 mm (1/4 x 36 in.)
|
H-Hose 6 x 2718 mm (1/4 x 107 in.)
I-Adapter
J-Orifice, 0.20 in.
K-Lift Cylinder 89 x 406 mm (3-1/2 x 16 in.)
|
L-Lift Cylinder 10 x 203 mm (3 x 8 in.)
M-Hose 6 x 978 mm (1/4 x 38.5 in.)
|
