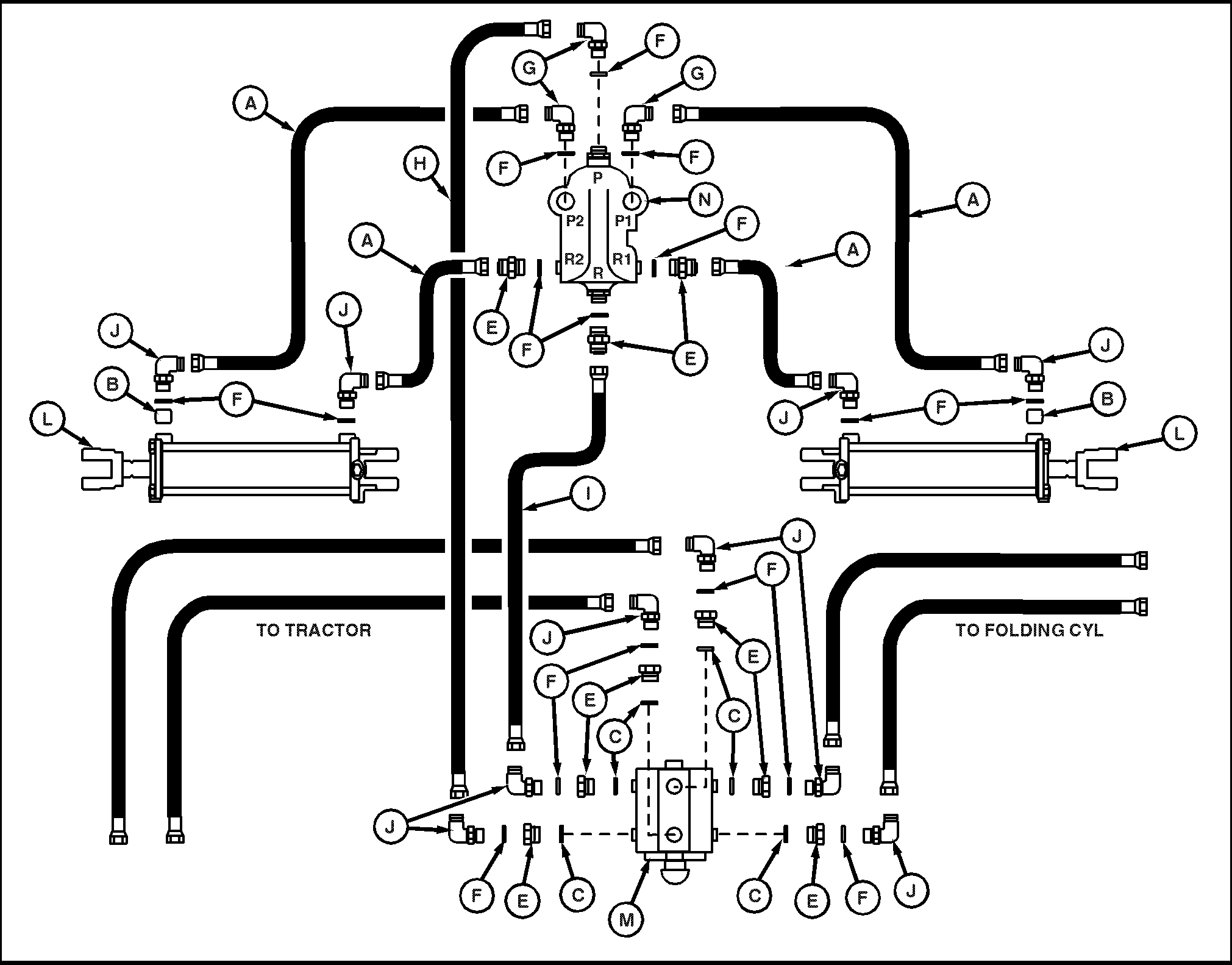

A-Hose 6 x 6477 mm (1/4 x 255 in.)
B-Orifice
C-O-Ring
D-Fitting

E-Adapter
F-O-Ring
G-Elbow Fitting 90°
H-Hose 6 x 965 mm (1/4 x 38 in.)

I-Hose 6 x 635 mm (1/4 x 25 in.)
J-Elbow Fitting
K-O-Ring (1-in.)

L-Cylinder 76 x 203 mm (3 x 8 in.)
M-Selector Valve
N-Sequencer Valve

NOTE: Ram end of cylinder plumbed to P ₁ and P ₂

Base end of cylinder plumbed to R ₁ and R ₂
