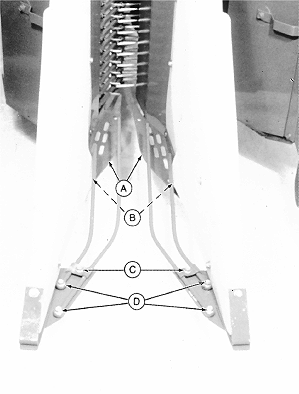

Adjusting Lower Plant Guides and Optional Stalklifter RodsNOTE: Plant guides lift and direct cotton closer to the lower spindles. The plant guides are installed at the factory in maximum lift position. Adjust plant guides to deliver cotton most efficiently to the lower spindles depending on your field conditions. 1. Loosen plant guide adjusting cap screws (B) and lower or raise plant guides (A).2. Tighten cap screws. 3. Stalklifter rods (attachment) can be installed using cap screws (C) and (D) and plates as shown.
|
|
