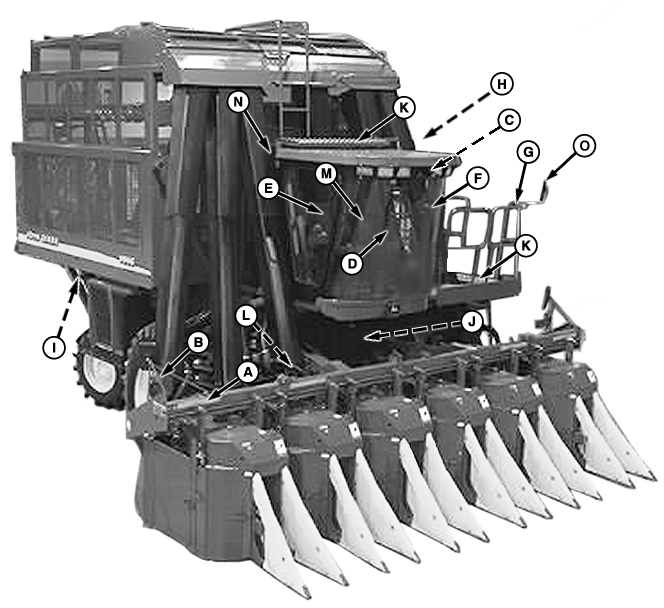

A-FRONT AND REAR REFLECTORS-Alerts traffic of your presence on roadway.
B-FRONT AND REAR HAZARD LIGHTS-Alerts oncoming and following traffic of your presence on roadway. Adjust rear warning lights to agree with machine transport width.
C-PARK BRAKE SWITCH
D-HORN-To alert others working in area.
E-CAB WITH SEAT BELT AND OPERATOR PRESENCE SYSTEM-For operator comfort and safety.
|
F-WINDSHIELD WIPER-For clear view of surroundings.
G-HAND RAILS-Gives support when climbing on machine, walking on platform, or walking on basket.
H-BASKET DOOR CYLINDER LOCK-UP-Front and rear, prevents basket door cylinders from operating when working under basket.
I-SMV EMBLEM-Alerts following traffic of your presence on roadway.
|
J-STARTER SOLENOID SHIELDING-For engine bypass start protection.
K-DIVOTTED STEPS AND PLATFORM-Helps prevent slipping when on platform or ladder, also reduces dirt and mud buildup.
L-UNIT LIFT CYLINDER LOCK UP-Prevents units from moving down.
M-OPERATOR PRESENCE SYSTEM-System will sense presence of operator in seat whenever row units are engaged and will stop machine if operator leaves seat for more than 5 seconds.
|
N-BASKET DUMP CYLINDER LOCKS-Front and rear, prevents basket dump cylinders from operating when engaged.
O-REARVIEW MIRRORS-For view of surroundings.
|
