Replacing Rotary Screen Drive Belt

causym CAUTION: Sudden movement of rotary screen and drive belt can cause serious injury or death to you or others. Shut off engine and remove key before replacing rotary screen drive belt.

1. Unhook latches (A) and open door (B).


A-Latches
B-Door

N67554

OUO1073,0001A97 -19-10SEP04-1/4

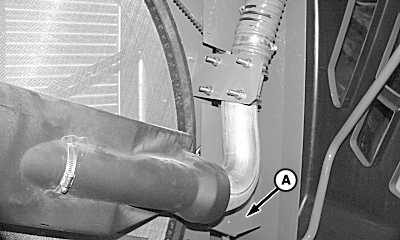

2. Remove two cap screws and safety shield (A).

NOTE: Nuts and washers on back side of panel will fall when cap screws are removed. Retain nuts and washers for reinstallation.

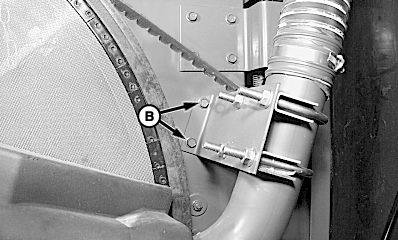

3. Remove cap screws (B).


A-Safety Shield
B-Cap Screws

N67553
N62286

OUO1073,0001A97 -19-10SEP04-2/4

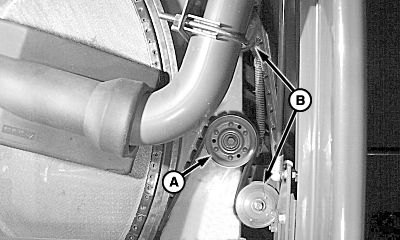

4. Pull down on spring loaded idler pulley (A) and remove belt from pulleys (B).


A-Spring Loaded Idler Pulley
B-Pulleys

TS285
N62285

OUO1073,0001A97 -19-10SEP04-3/4

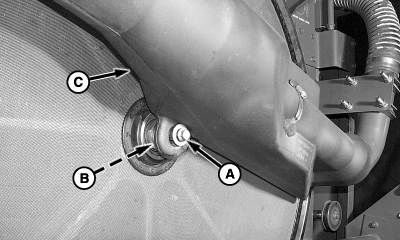

5. Remove cap screw (A) and spacer (B).

6. Pull trash expeller (C) out slightly away from screen and remove belt.

7. Install replacement belt in reverse order.


A-Cap Screw
B-Spacer
C-Trash Expeller

N56339

OUO1073,0001A97 -19-10SEP04-4/4
