Check Hydrostatic/Hydraulic Oil Level

For proper check of hydrostatic/hydraulic oil, lower row units and basket. Top of oil level should be visible in oil reservoir sight glass (A) at location (B). Remove cap (C) and add oil if necessary. (See Fuels, Lubricants And Coolants section for proper hydraulic oil specifications).

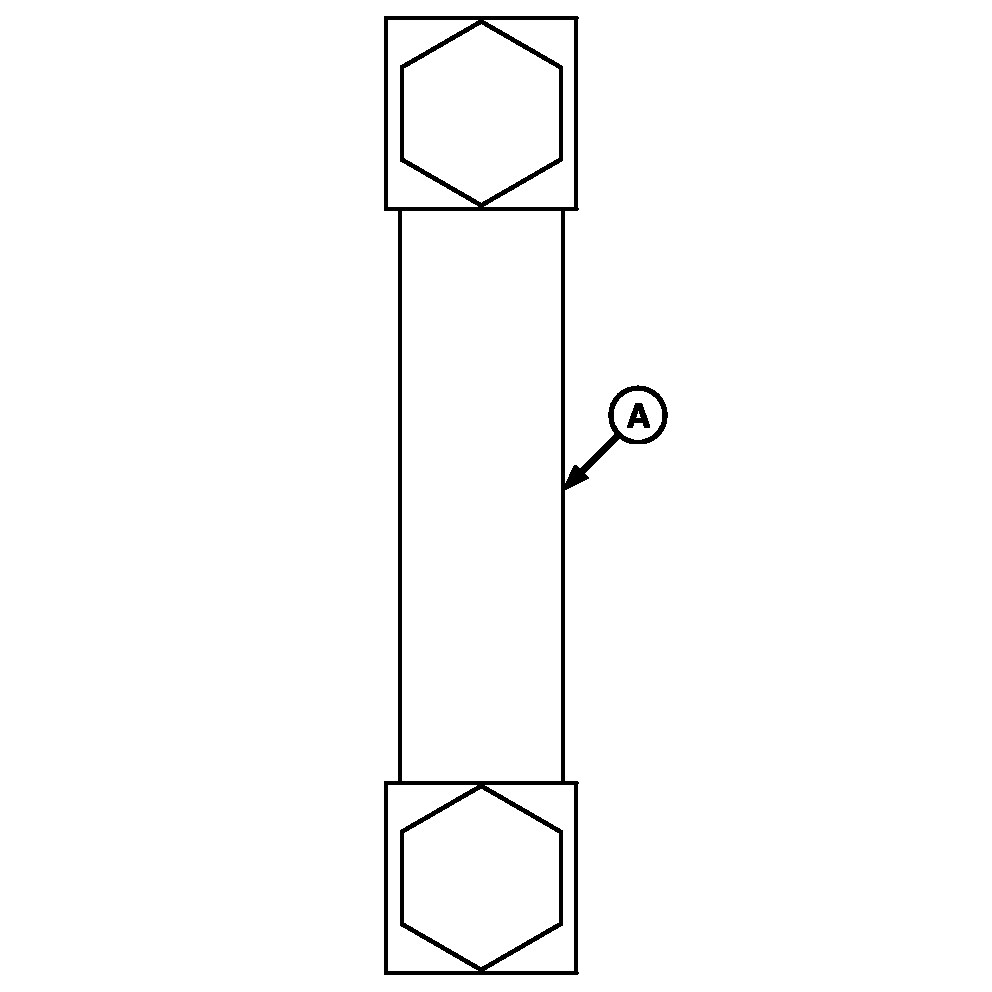

A-Oil Reservoir Sight Glass

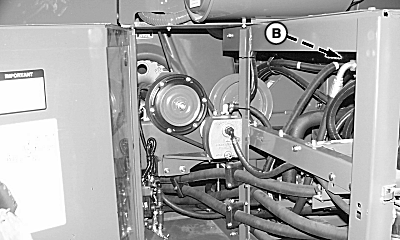

B-Location

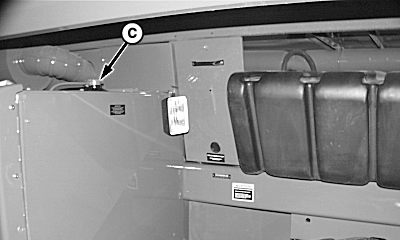

C-Cap

OUO1073,0001A9B -19-14APR05-1/1
