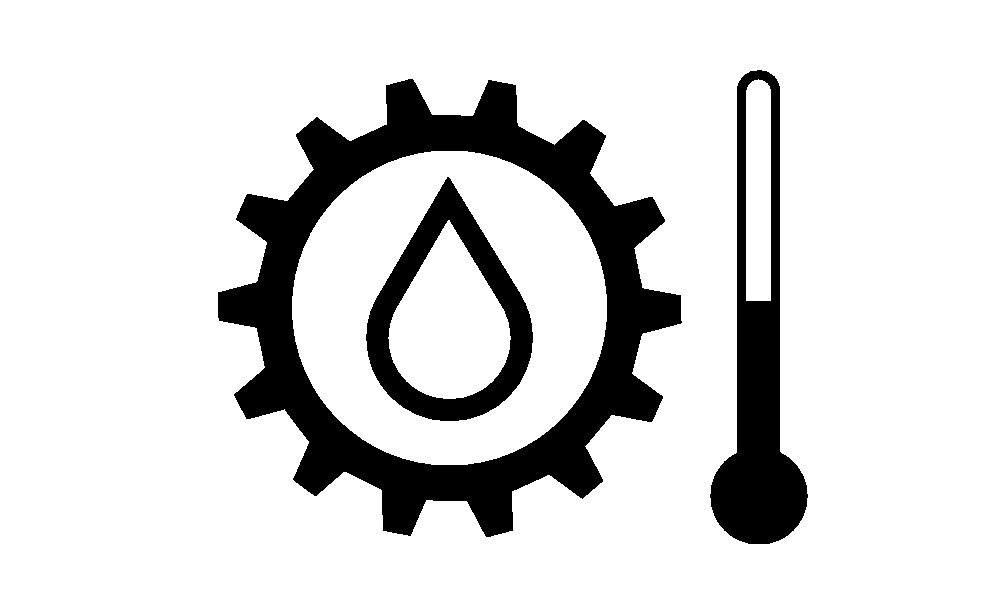

High Transmission/Brake Oil Temperature Indicator

Transmission oil temperature indicator will light and a pulsed warning alarm will sound when transmission oil temperature reaches 90.6°C (195°F).

Reduce brake usage to avoid additional rise in temperature. Do not keep your foot on the brakes when they are not needed.

NOTE: Hydro handle must be stroked in order for oil to flow through the oil cooler.

Continue to operate machine (if possible) until the light and warning alarm stop. This will allow oil to cool down more quickly.

Check oil level in transmission. Clean debris from oil cooler.

OUO1078,000043D -19-08APR05-1/1
