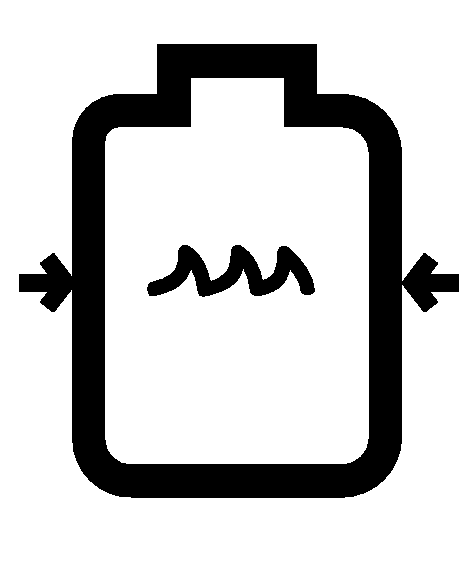

Low Moistener System Pressure Indicator

Low moistener system pressure indicator will light and a pulsed warning alarm will sound when moistener system pressure drops below 13.8 kPa (2 psi) with fan engaged and engine above 2000 rpm. (See Moistener System section for details).

(To test indicator light bulb for proper operation, see Indicator Display Panel Bulb Check in this section).

OUO6043,0000017 -19-23JAN01-1/1
