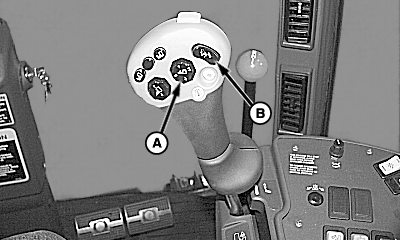

Basket Unload ButtonsNOTE: Position basket and door as needed by pressing and releasing button. Press top of button (A) to raise basket and open basket door. Press top of button (B) to lower basket door as needed without changing position of basket. Press bottom of button (B) to raise/close basket door as needed without changing position of basket. Press left-hand side of button (A) to engage door conveyer only and right-hand side of button to engage both the door conveyer and basket floor conveyer. Press bottom of button (A) to lower basket and bottom of button (B) to raise/close basket door. |
|
OUO6043,0000023 -19-26JAN01-1/1 |
