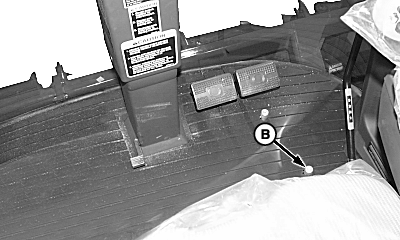

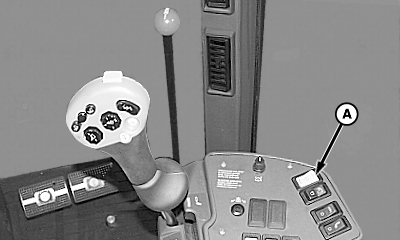

Auto/Manual Compactor Augers SwitchWhen auto/manual compactor augers switch (A) is in "AUTO" position, compactor augers will engage by pressing floor switch (B) or will automatically engage for a default time of 20 seconds when cotton reaches sensor level in the basket. Duration of automatic engagement can be adjusted in the diagnostic mode of the tachometer. (See Adjust Operate Time Of Automatic Basket Compactor Augers-Address 32 in the Basket section). When switch is in "MANUAL" position, augers will only engage using floor switch.
|
|
