Throttle Switch

NOTE: To ensure full output from air system, always place throttle at maximum throttle position when picking cotton.

Throttle switch (A) has three detent positions;

  • Idle throttle position -920 rpm
  • Middle throttle position -1700 rpm
  • Maximum throttle position -2300 rpm

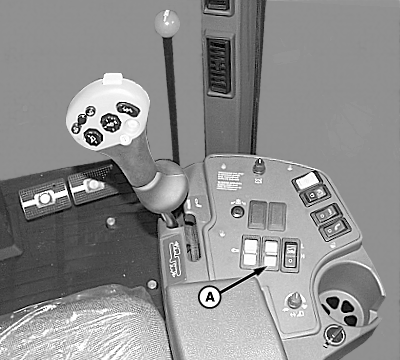

A-Throttle Switch

N57671

OUO6043,000002F -19-26JAN01-1/1
