Header Height Control Calibration Procedure

Calibration of the system is required for proper operation. The following calibration procedure should be performed annually or if one of the row unit sensors is replaced.

An assistant will be required to perform this procedure.

(See your John Deere dealer if your tachometer display differs from what is described in this procedure).

OUO6043,000139E -19-19MAY05-1/9

causym CAUTION: If you or others become entangled in a unit, serious injury or death can result. Be sure units are disengaged. Keep away from areas which might pinch or crush as units move up and down.

1. Park machine on a flat level concrete surface. Engage park brake switch and turn off engine. Turn off all accessories and verify fan/units switch is off.

2. Press and hold line select switch (A) on tachometer. Turn on key switch and start engine. Release line select switch.

3. Tachometer will now be in diagnostic mode as shown.

N56366


A-Line Select Switch

OUO6043,000139E -19-19MAY05-2/9

4. Press and release line select switch (A) until tachometer displays as shown.


A-Line Select Switch

N56367

OUO6043,000139E -19-19MAY05-3/9

5. Press and release fan speed switch (A) until tachometer displays as shown.


A-Fan Speed Switch

N56368

OUO6043,000139E -19-19MAY05-4/9

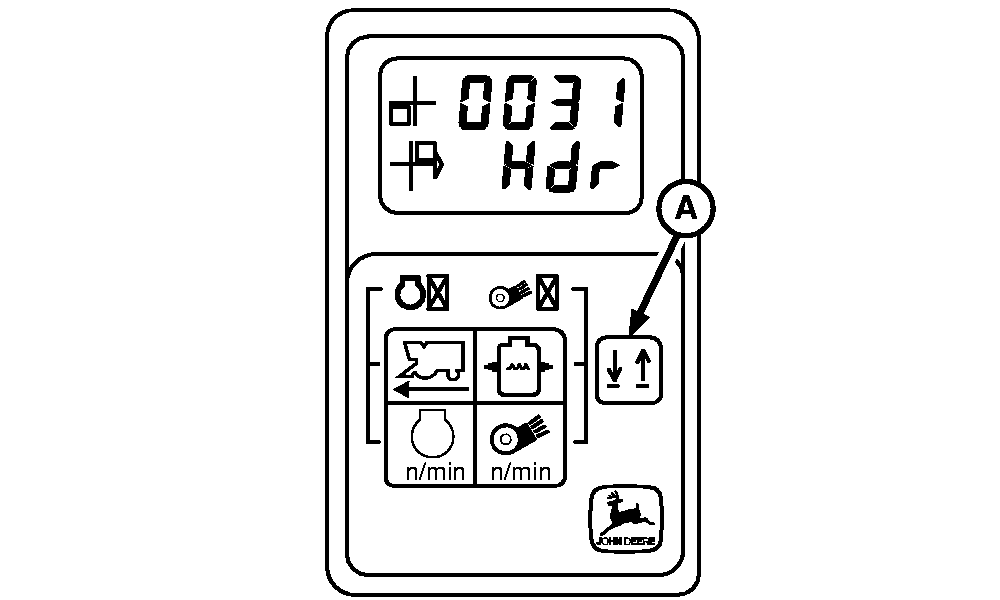

6. Press and release line select switch (A) until tachometer displays as shown.


A-Line Select Switch

N56369

OUO6043,000139E -19-19MAY05-5/9

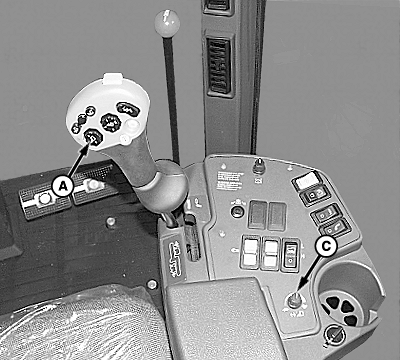

7. Using raise/lower all units button (A), lower all units completely on concrete surface.

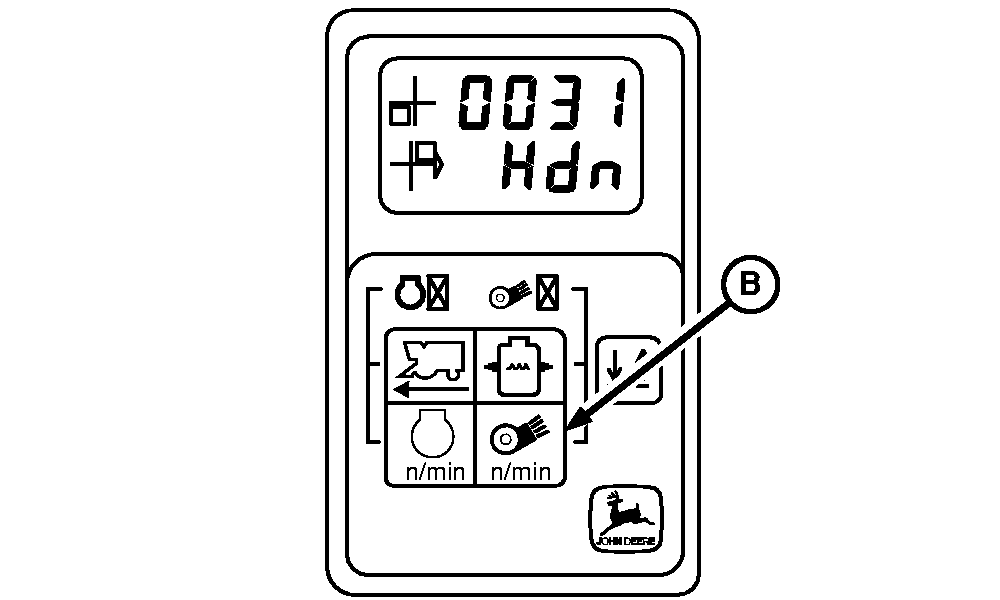

8. Press and release fan speed switch (B). Tachometer will now display as shown.

9. If machine is not equipped with inner height sensing shoes, rotate response rate control knob (C) fully clockwise.

If machine is equipped with inner height sensing shoes, rotate response rate control knob fully counterclockwise.


A-Raise/Lower All Units Button
B-Fan Speed Switch
C-Response Rate Control Knob

N58982
N58979

OUO6043,000139E -19-19MAY05-6/9

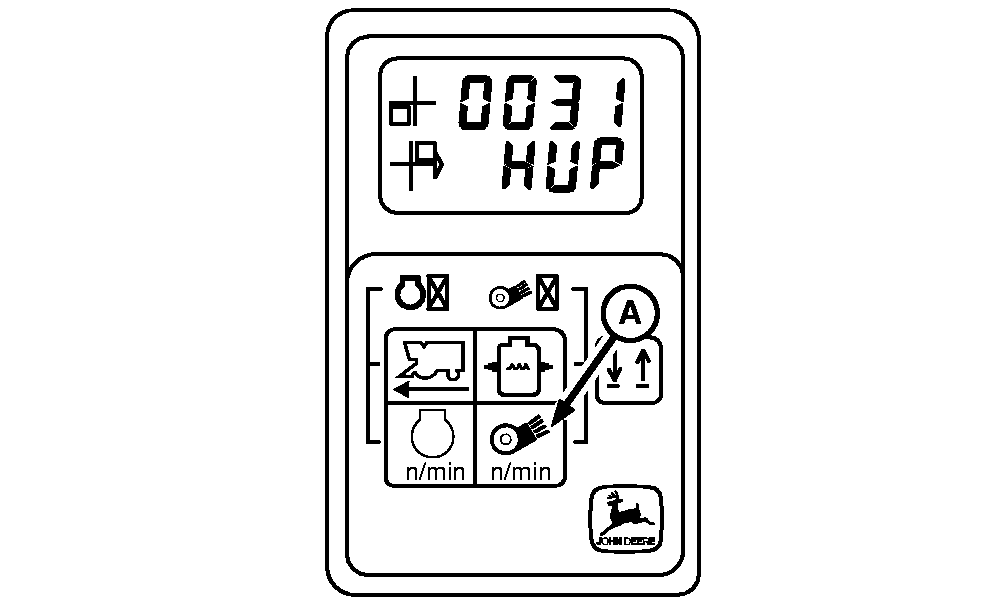

10. Press and release fan speed switch (A). Tachometer will now display as shown.


A-Fan Speed Switch

N60255

OUO6043,000139E -19-19MAY05-7/9

11. Raise all row units using raise/lower all units button until height sensors are not touching concrete surface.

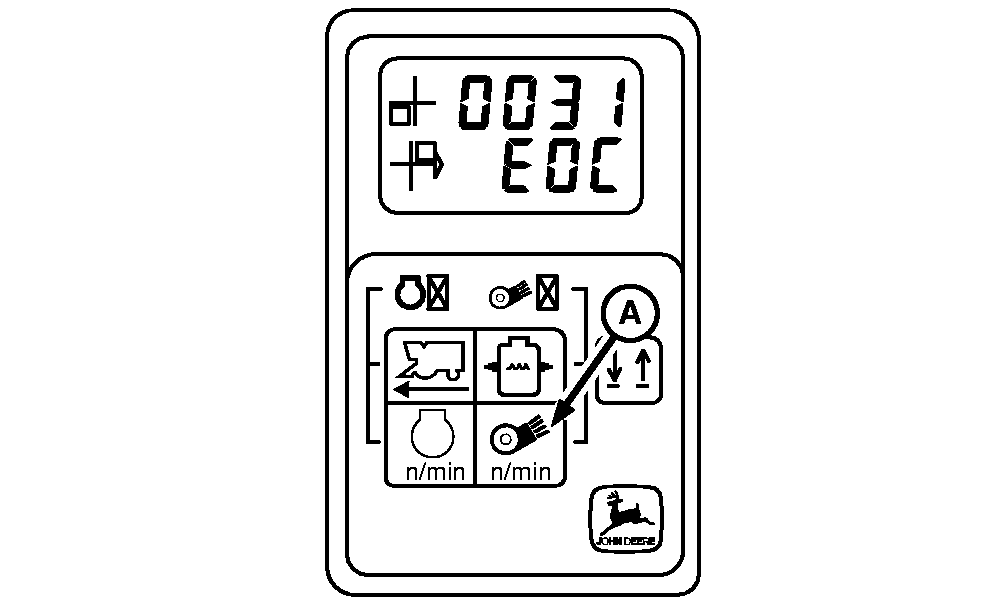

12. Press and release fan speed switch (A). Tachometer will now display as shown.


A-Fan Speed Switch

N56372

OUO6043,000139E -19-19MAY05-8/9

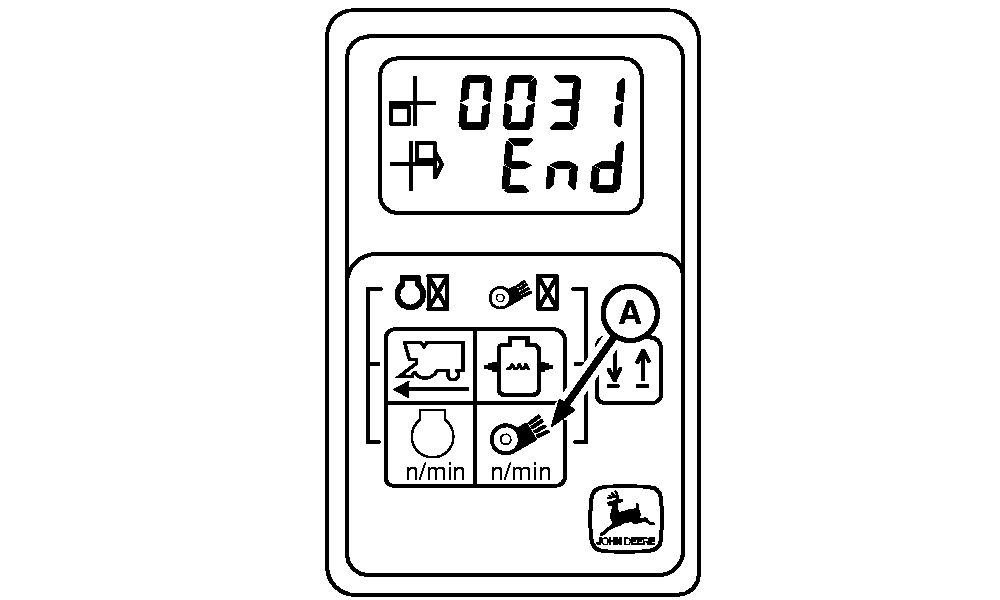

13. Press and release fan speed switch (A) to store all calibration values. Tachometer will now display as shown.

14. Turn off machine and restart to return header height control system to normal operation mode.


A-Fan Speed Switch

N56373

OUO6043,000139E -19-19MAY05-9/9
